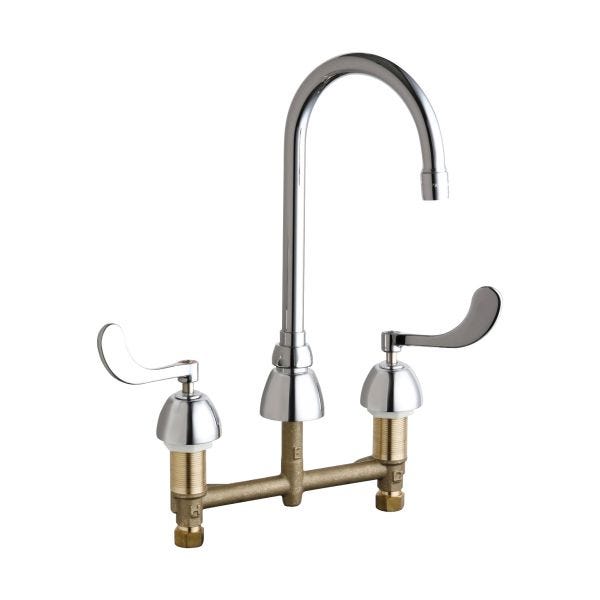

Chicago Faucet 786-E3ABCP
LF 8CC GOOSENECK W/WRIST HNDL E3
SKU
564627
Chicago Faucet® Kitchen Sink Faucet, Concealed, Series: 786, 2.2 gpm, 8 in Center Distance, Gooseneck Spout, 5-1/4 in Spout Reach, 7-1/2 in Spout Height, Lever, 2 Handles, No Side Spray(Y/N), 3 Faucet Holes, 1-1/4 in Faucet Hole, 1/2 in, NPSM, 1-3/8 in Maximum Deck Thickness, Deck Mount, Quaturn® Compression Valve/Cartridge, 11-5/8 in H, Brass, Polished Chrome, Domestic, Commercial
- 8 in fixed centers
- GN2AAB 5-1/4 in rigid swing gooseneck spout
- E3AB 2.2 gpm (8.3 L/min) pressure compensating softflo aerator
- 317-PR vandal proof 4 in wrist blade handle, sixteen-point tapered broach
- ECAST® construction with equal to or less than 0.25% lead content by weighted average
- 20 to 125 psi operating
- 40 to 140 deg F operating
- For hot and cold water
| Maximum Deck Thickness | 1-3/8 in |
|---|---|
| Faucet Hole Size | 1-1/4 in |
| Type | Concealed |
| Side Spray(Y/N) | No |
| Number of Handles | 2 |
| Series | 786 |
| Handle Type | Lever |
| Connection Type | NPSM |
| Spout Height | 7-1/2 in |
| Domestic/Import | Domestic |
| Number of Faucet Holes | 3 |
| Spout Reach | 5-1/4 in |
| Dimensions | 11-5/8 in H |
| Material | Brass |
| Center Distance | 8 in |
| Connection Size | 1/2 in |
| Commercial/Residential | Commercial |
| Flow Rate | 2.2 gpm |
| Valve/Cartridge Type | Quaturn® Compression |
| Finish/Color | Polished Chrome |
| Spout Type | Gooseneck |
| Mounting Type | Deck |
| Brand | Chicago Faucet |
| Type | Two-Handle |
| Finish | Chrome |
