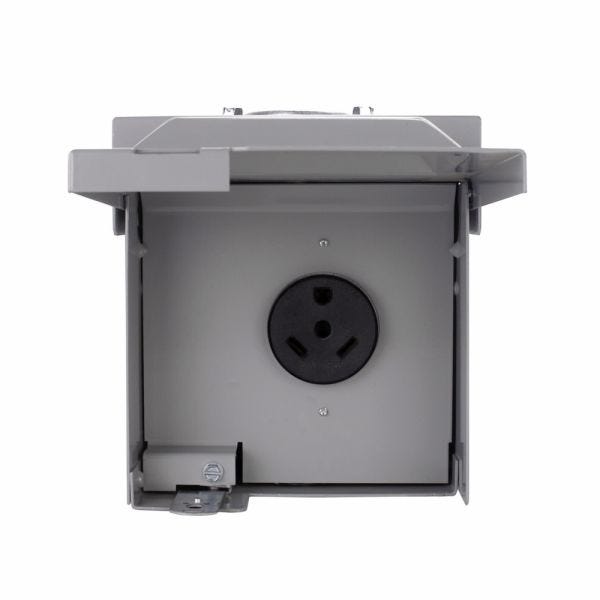

EATON CHU4S
30A POWER OUTLET PANEL
SKU
707349
EATON Power Outlet Panel, 2-Pole 3-Wire 4-Circuit, 125 VAC, 30 A, NEMA TT-30R Receptacle, Non-Ground Fault Circuit Breaker Type, 8 to 2/0 AWG Wire, Top Feed, NEMA 3R, Galvanized Steel, Surface Mount
- Receptacles conform to NEMA and/or ANSI configurations as specified by the national electrical Code® (NEC)
- Includes a factory installed insulated neutral bar with provisions for bonding when used for temporary service entrance applications
- NEMA TT-30R receptacle left
| Receptacle Type | NEMA TT-30R |
|---|---|
| Feed Type | Top |
| Mounting Type | Surface |
| Circuit Breaker Type | Non-Ground Fault |
| Type | 2-Pole 3-Wire 4-Circuit |
| Enclosure Type | NEMA 3R |
| Wire Size | 8 to 2/0 AWG |
| Voltage Rating | 125 VAC |
| Material | Galvanized Steel |
| Amperage Rating | 30 A |
| Brand | Eaton |
