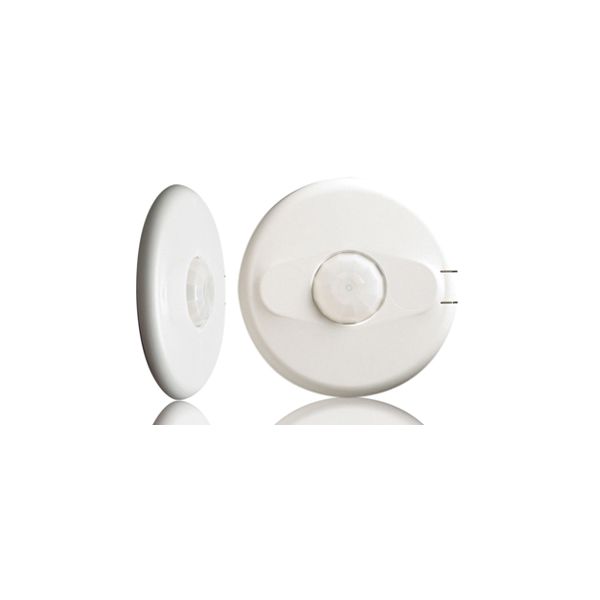

WattStopper CI-300
CEILING SENSOR PASSIVE IR
SKU
790273
WattStopper®, CI-300, Ceiling Mount Occupancy Sensor, Low Voltage Low Profile, 24 VDC, 20 mA, Passive Infrared Sensor, 1200 sq-ft Coverage, 360 deg Viewing, 5 to 30 min Time Delay, LED Lamp, Flying Lead Connection, Automatic On/Automatic Off Control Output, Wall Mounting, 35 deg C, Plastic, White, 4.5 in Dia x 1.02 in D Dimensions
- Architecturally appealing low profile appearance
- Auto set automatically selects optimal time delay and sensitivity settings
- Automatic or manual on operation when used with a BZ-150 power pack
- Plug terminal wiring for quick and easy installation
- Accepts low voltage switch input for manual on operation
- Walk through mode increases savings potential
- PIR (high/low) sensitivity adjustment
- CI-300 contains isolated relay with N/O and N/C outputs rated for 1 A at 30 VDC/VAC
- Advanced control logic based on RISC microcontroller
- LED indicates occupancy detection
- Dip switch simplifies sensor adjustments
- Clip mounting system simplifies ceiling tile installation
- Isolated relay, light level
- Magnetic low voltage
| Lamp Type | LED |
|---|---|
| Temperature Rating | 35 deg C |
| Type | Low Voltage Low Profile |
| Mounting Type | Wall |
| Connection Type | Flying Lead |
| Material | Plastic |
| Viewing Angle | 360 deg |
| Sensor Type | Passive Infrared |
| Dimensions | 4.5 in Dia x 1.02 in D |
| Coverage | 1200 sq-ft |
| Voltage Rating | 24 VDC |
| Control Output | Automatic On/Automatic Off |
| Amperage Rating | 20 mA |
| Color | White |
| Time Delay | 5 to 30 min |
| Brand | Legrand |
