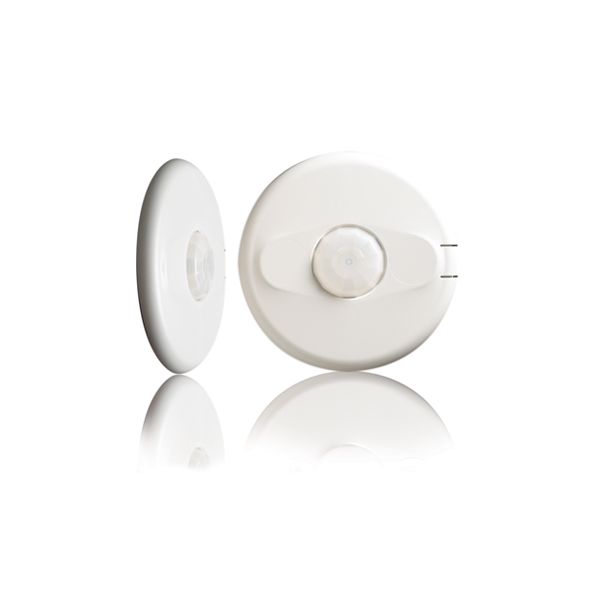

WattStopper CI-305-1

WattStopper®, CI-305-1, Ceiling Mount Occupancy Sensor, Low Voltage Low Profile, Series: CI-305, 24 VAC/VDC, 9 mA, Passive Infrared Sensor, 500 sq-ft Coverage, 360 deg Viewing, 5 to 30 min Time Delay, LED Lamp, Flying Lead Connection, Automatic On/Automatic Off Control Output, Wall Mounting, 35 deg C, Plastic, White, 4.5 in Dia x 1.02 in D Dimensions

• 95% relative humidity, non-condensing, for indoor use only environmental conditions
• This passive infrared (PIR) ceiling sensors automatically turn lighting on and off based on occupancy
• The sensor mounts on the ceiling with a flat, low profile appearance and provides 360 deg of coverage
• Detection signature analysis eliminates false triggers and provides immunity to RFI and EMI
• Walk through mode turns lights off 3 min after the area is initially occupied - ideal for brief visits such as mail delivery
• Built-in light level sensor featuring simple, one step setup
• Sensors work with low voltage momentary switches for manual control
• Dip switch simplifies sensor adjustments
• Clip mounting system simplifies ceiling tile installation
• 1 A at 30 VAC/VDC load rating
• Magnetic low voltage
• Architecturally appealing low profile appearance
• Auto set automatically selects optimal time delay and sensitivity settings
• Automatic or manual on operation when used with a BZ-150 power pack
• Plug terminal wiring for quick and easy installation
• Accepts low voltage switch input for manual on operation
• Walk through mode increases savings potential
