Metalux 24FPSL2SCT3
2X4 SELECTABLE FLAT PANEL
SKU
857339

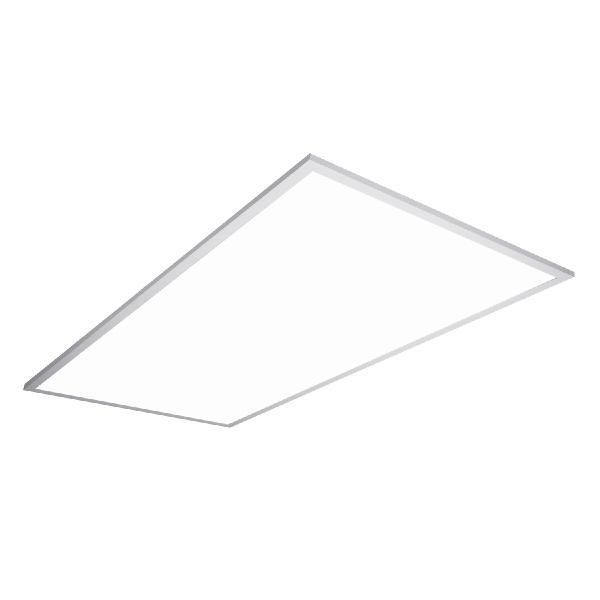

Metalux, 24FPSL2SCT3, LED Panel, Flat Medium, Series: FPS, 120/277 V, 30.2 W Fixture, 0.35/0.15 A, Integrated LED Lamp, 115.5 Lumens/W Light Output, 60000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, White Frosted Lens, 4795 Lumens, Insulated Insulation, IP5X Enclosure, Surface/Suspended Mounting, Aluminum Housing Material, 47-7/8 in L x 11-7/8 in W x 3 in H Dimensions
- Ultra-thin approx 2 in height
- High performance efficacy up to 120 Lumens/W
- Fits in shallow plenums with room to spare
- Simple switch to adjust color on site as desired
- Simple switch to set lumens and watts as needed for the task
| Ballast Type | 0 to 10 V Dimmable |
|---|---|
| Dimensions | 47-7/8 in L x 11-7/8 in W x 3 in H |
| Amperage Rating | 0.35/0.15 A |
| Lumens | 4795 Lumens |
| Color Rendering Index (CRI) | 80 |
| Average Life | 60000 hr |
| Fixture Wattage | 30.2 W |
| Lens Type | White Frosted |
| Mounting Type | Surface/Suspended |
| Light Output | 115.5 Lumens/W |
| Enclosure Type | IP5X |
| Insulation Type | Insulated |
| Color Temperature | 4000 K |
| Housing Material | Aluminum |
| Lamp Type | Integrated LED |
| Type | Flat Medium |
| Voltage Rating | 120/277 V |
| Series | FPS |
| Brand | Cooper Wiring Devices |
