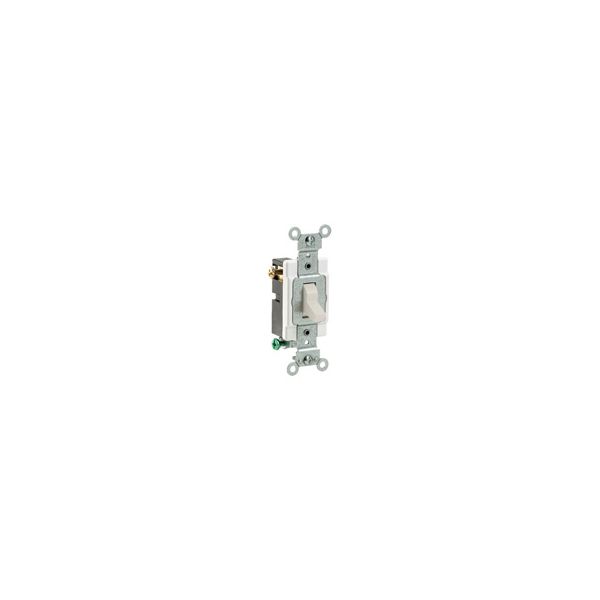

Leviton CS315-2T
3WAY 15A 277V LA SW
SKU
780382
Leviton®, CS315-2T, AC Quiet Toggle Switch, 3-Way Grounding, 120/277 VAC, 15 A, 800 W, 1000 VA Power, 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC Contact, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Side Wire Terminal, Thermoplastic, Light Almond, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.31 in W x 0.92 in D Dimensions
- Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installation
- Heavy gauge, rust resistant steel mounting strap
- Accepts no 14 to 12 AWG copper or copper clad wire
- Convenient break-OFF plaster ears for best alignment
- Large switch contacts for maximum conductivity
- 1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
| Dimensions | 46 in H x 1.31 in W x 0.92 in D |
|---|---|
| Power Rating | 800 W, 1000 VA |
| Voltage Rating | 120/277 VAC |
| Mounting | Surface |
| Environmental Conditions | -40 to 120 deg C Operating Temperature |
| Contact Rating | 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC |
| Color | Light Almond |
| Type | 3-Way Grounding |
| Material | Thermoplastic |
| Terminal Type | Side Wire |
| Amperage Rating | 15 A |
| Actuator | Toggle |
| Enclosure | NEMA WD-1/WD-6 |
| Brand | Leviton Mfg |
| Amperage | 15 Amp |
| Number | 3 Pole |
| Type | 3-Way |
| Voltage | 120/277V |
| Color | Light Almond |
