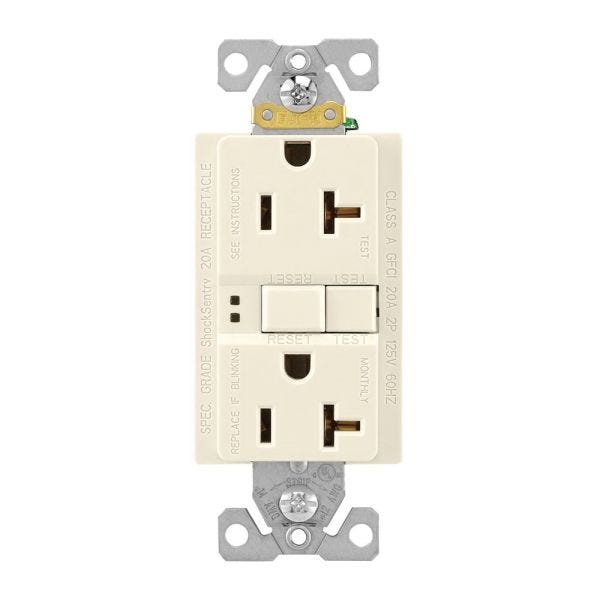

EATON SGF20LA

EATON Arrow Hart™ Eaton Wiring Devices GFCI Receptacle, Duplex Grounding Self-Test, Series: SGF, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -31 to 150.8 deg F, Back/Side Wire/Screw Terminal, Brass/Polycarbonate, Light Almond, 1.68 in W x 1.27 in D x 4.2 in H Dimensions

• Performs periodic self tests to ensure integrity of GFCI protection
• Visual trip indicator light gives quick notification of a tripped or "end of life" condition
• Meets and exceeds 10 kA short circuit testing and UL 943 safety standards
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
• Ground termination with back wire clamp provides secure wiring and reduces installation time
• Tamper-resistant shutters help prevent foreign objects from being inserted
• Line side terminals are backed out and staked for fast installation
• Horizontal test/reset button alignment provides larger unobstructed area
• Test and reset buttons are color matched to provide superior aesthetics
• Tapered back wire openings handle multiple wire sizes and types for application up to 10 AWG solid or stranded wire
• When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
• Line load miswiring protection, GFCIs will not provide power downstream when wired incorrectly
• Tri-combo head terminal and mounting screws
• UL listed, fully compliant with all latest UL 943 class A GFCI requirements
• Longer, wider "bridged" strap provides 40% more contact area with wallboard, virtually eliminating floating installation
