Danfoss 088L3185
LX MAT 145 SQ FT
SKU
753796

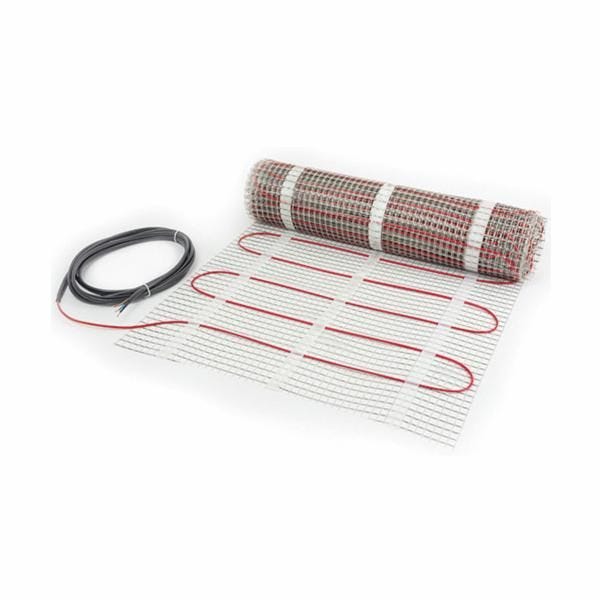

Danfoss Floor Heating Mat, LX Electric, 1/2 in Width, 72-1/2 ft Length, 145 sq-ft Coverage, 240 VAC, 7.3 A, 1740 W Wattage, 16 AWG Cord, 3/4 in Bend Radius, 100 deg C, Floor Mounting, Copper Alloy
- D478,654 - D478,974 - D478,980 - 7,0 08,192 U.S patents
- It's a proven technology that is safe, reliable, and energy efficient
- Unique adhesive system saves 70% on installation time
- Pre-applied heating cable means even heat every time
- Dual-adhesive backing, no fastening required
- Single point connection
- Eliminates EMFs (electromagnetic fields)
- Customize mat on the job site
- Minimal thickness-only adds 3/16 in height to the floor
- Safety approved for wet locations
- Even heat every time
- 10 ft power lead length
- 1 core, 2 conductor
- 3/16 in dia outside, 32.6 Ohm
- Teflon FEP Insulation, PVC jacket material
| Length | 72-1/2 ft |
|---|---|
| Wattage | 1740 W |
| Width | 1/2 in |
| Voltage Rating | 240 VAC |
| Type | LX Electric |
| Coverage | 145 sq-ft |
| Mounting Type | Floor |
| Bend Radius | 3/4 in |
| Temperature Rating | 100 deg C |
| Material | Copper Alloy |
| Amperage Rating | 7.3 A |
| Cord Size | 16 AWG |
| Brand | Danfoss |
