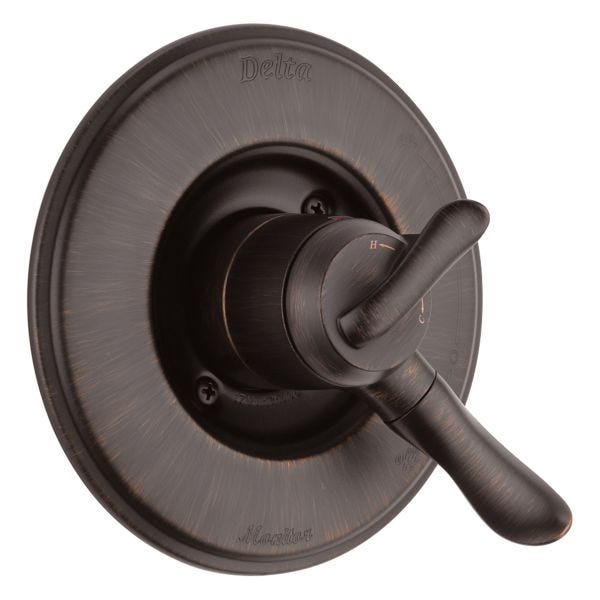

Delta Faucet Company T17094-RB
*RB DUAL FUNC. LINDEN TRIM ONL
SKU
530168
DELTA® Valve Trim, Series: Monitor® 17, Linden™ Collection, 2 gpm Shower Flow Rate, Lever Handle, 6-3/8 in Dia Trim, 1222 Pressure Balanced, 2 Spray Functions, 80 psi Pressure, For Use With: MultiChoice® R10000 Series Universal Rough-In Valve Body, Brass, Venetian Bronze, Domestic
- Dual function pressure balance control - handle adjusts volume - dial adjusts temperature
- Monitor® 17 series pressure balanced bath mixing valve trim
- Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
- Back-to-back installation capability
- Field adjustable to limit handle rotation into hot water zone
- Maximum diameter rotation adjustable between 90 deg and 180 deg
- All parts are replaceable from the front of the valve
- Stem extension kit RP77992 can be ordered to allow for an additional 1-3/4 in wall thickness
- RP77992 ships with chrome escutcheon screws
- For special finishes also order RP12630 escutcheon screws in desired finish
- Hot/cold indicator
| Handle Type | Lever |
|---|---|
| Material | Brass |
| Number of Spray Functions | 2 |
| Valve/Cartridge Type | 1222 Pressure Balanced |
| Pressure Rating | 80 psi |
| Trim Size | 6-3/8 in Dia |
| Suitable For Use With | MultiChoice® R10000 Series Universal Rough-In Valve Body |
| Finish/Color | Venetian Bronze |
| Shower Flow Rate | 2 gpm |
| Series | Monitor® 17 |
| Collection | Linden™ |
| Domestic/Import | Domestic |
| Brand | Delta |
