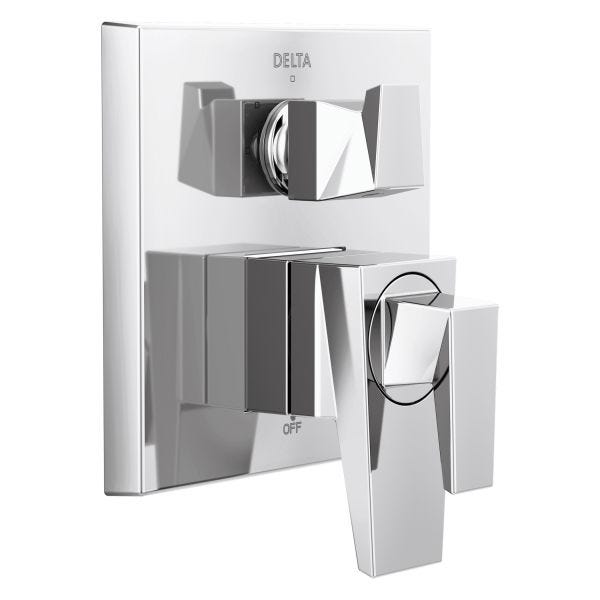

DELTA T27843-PR

DELTA® Valve Trim, Square, Series: Monitor® 17 Series, Trillian™ Collection, 5.8 gpm Shower Flow Rate, 1 Handles, Lever Handle, 6-7/8 in L x 6-7/8 in H x 4-3/16 in D Trim, Pressure Balanced, Hand Shower: No, 3 Spray Functions, 60 psi Pressure, Wall Mounting, For Use With: R22000 Series MultiChoice® Universal Rough Valve Body, Zinc, Lumicoat™ Polished Chrome, 4.15 in L x 6.9 in W x 6.9 in H Dimensions, Import, Commercial/Residential Commercial/Residential

• Lumicoat finishes easily wipe clean and are guaranteed to resist mineral buildup and hard water stains on the product's most commonly touched areas
• DELTA MultiChoice integrated shower diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
• Top handle controls diverter functions
• Bottom handle controls on/off and adjusts volume, while the dial controls temperature
• Two port, three position diverter
• Two individual and one shared position
• Monitor pressure balance valve keeps water temperature within a safe +/-3.6 deg F (+/-1.7 deg C) helping to protect you from sudden changes in hot or cold water pressure
• Trim kit only, must order MultiChoice universal integrated diverter rough separately to complete the unit
• Recommended rough-in valve kit R22000 sold separately
• Maintains a balanced pressure of hot and cold water even when a valve is turned on/off elsewhere in the system
• Field adjustable to limit handle rotation into hot water zone
• Bottom handle 90 deg maximum rotation
• Red/blue indicator markings
• Standard installation allows up to 1-1/8 in finished wall thickness
• Maximum system flow rate 5.8 gpm at 60 psi with R22000
