DELTA T27967-SS
ARA 17 SERIES/6 SET DIV/BS
SKU
697597

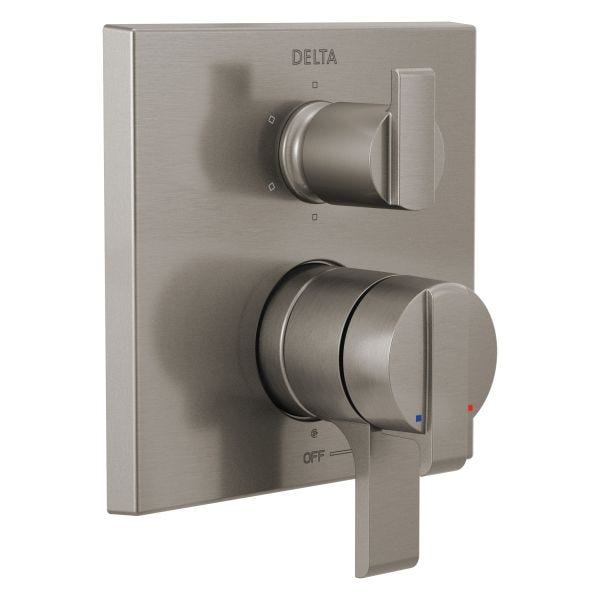

DELTA® Valve Trim, 6-Setting Angular Modern, Series: Monitor® 17, Ara® Collection, Integrated Diverter Spout, Lever Handle, 6-13/16 in W Trim, 1222 Pressure Balanced, For Use With: MultiChoice® R22000 Series Universal Rough-In Valve Body, Stainless Steel, Domestic
- 6-setting diverter trim
- 2-handle trim with separate temperature dial
- Control volume and water temperature independently with two separate handles for more refined control of your shower experience
- Monitor pressure balance valve keeps water temperature within a safe +/- 3 deg F, helping to protect you from sudden changes in hot or cold water pressure
- Trim kit only
- Top handle controls diverter functions
- Bottom handle controls on/off and temperature
- Field adjustable to limit handle rotation into hot water zone
- Bottom handle 120 deg maximum rotation
- Red/blue indicator markings
- Six function diverter for 3 individual positions, 3 shared positions
- Standard installation allows up to 1-1/8 in finished wall thickness
| Spout Type | Integrated Diverter |
|---|---|
| Handle Type | Lever |
| Type | 6-Setting Angular Modern |
| Valve/Cartridge Type | 1222 Pressure Balanced |
| Trim Size | 6-13/16 in W |
| Suitable For Use With | MultiChoice® R22000 Series Universal Rough-In Valve Body |
| Finish/Color | Stainless Steel |
| Series | Monitor® 17 |
| Collection | Ara® |
| Domestic/Import | Domestic |
| Brand | Delta |
