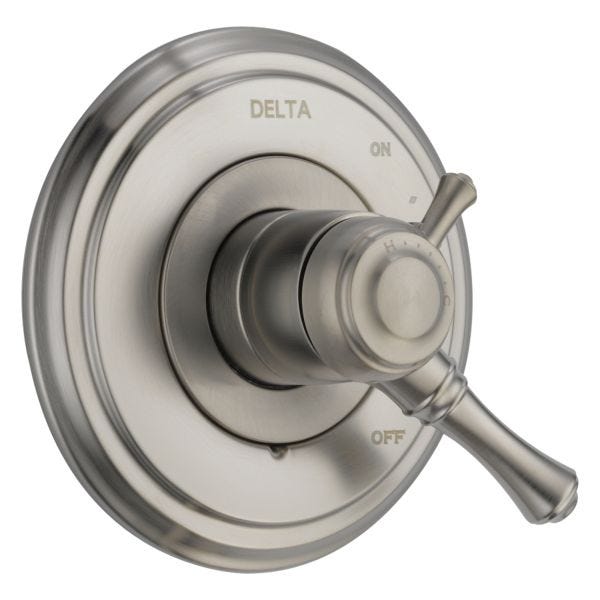

Delta Faucet Company T17097-SS
CASSIDY 17SERIES VLV W/HDL STA
SKU
560290
DELTA® Valve Trim, Series: Monitor® 17, Collection: Cassidy™, 2 gpm Shower Flow, Lever Handle, 7 in Dia Trim, Dual-Function Pressure Balanced Valve/Cartridge, 80 psi, Wall Mount, For Use With: MultiChoice® R10000 Series Universal Rough-In Valve Body, Brass, Stainless Steel, Domestic
- Dial adjusts temperature - handle adjusts volume
- Order MultiChoice® universal rough separately
- Monitor® 17 series pressure balanced bath mixing valve trim
- Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
- Back-to-back installation capability
- Lever volume control handle, temperature adjustment diameter
- Field adjustable to limit handle rotation into hot water zone
- Maximum diameter rotation adjustable between 90 deg and 180 deg
- All parts are replaceable from the front of the valve
- Stem extension kit RP77992 can be ordered to allow for an additional 1-3/4 in wall thickness
- RP77992 ships with chrome escutcheon screws
- For special finishes also order RP12630 escutcheon screws in desired finish
- Hot/cold indicator
| Mounting Type | Wall |
|---|---|
| Handle Type | Lever |
| Material | Brass |
| Valve/Cartridge Type | Dual-Function Pressure Balanced |
| Pressure Rating | 80 psi |
| Trim Size | 7 in Dia |
| Suitable For Use With | MultiChoice® R10000 Series Universal Rough-In Valve Body |
| Finish/Color | Stainless Steel |
| Shower Flow Rate | 2 gpm |
| Series | Monitor® 17 |
| Collection | Cassidy™ |
| Domestic/Import | Domestic |
| Brand | Delta |
| Finish | Stainless Steel |
