DeWALT 7427SD1-PWR
1/2X81/2" POWER STUD WEDGE ANC
SKU
859209

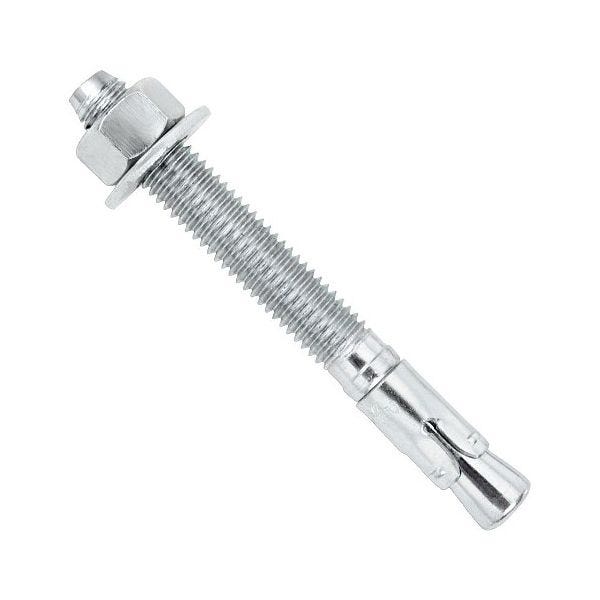

DeWALT® Wedge Expansion Anchor, 1/2 in Diameter, 8-1/2 in Overall Length, 6-3/4 in Thread Length, Carbon Steel, Zinc Plated, 2-1/4 in Minimum Embedment Depth, 1/2 in Drill, 1/2-13 Thread, UNC Thread, 5-3/4 in Maximum Work Thickness, 4195 lb Shear Strength, 4155 lb Tensile Strength
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile load
- Nominal drill bit size is the same as the anchor diameter
- Length ID code and identifying marking stamped on head of each anchor
| Material | Carbon Steel |
|---|---|
| Tensile Strength | 4155 lb |
| Maximum Work Thickness | 5-3/4 in |
| Thread Size | 1/2-13 |
| Diameter | 1/2 in |
| Overall Length | 8-1/2 in |
| Thread Type | UNC |
| Finish | Zinc Plated |
| Shear Strength | 4195 lb |
| Minimum Embedment Depth | 2-1/4 in |
| Drill Size | 1/2 in |
| Thread Length | 6-3/4 in |
| Brand | DeWalt |
