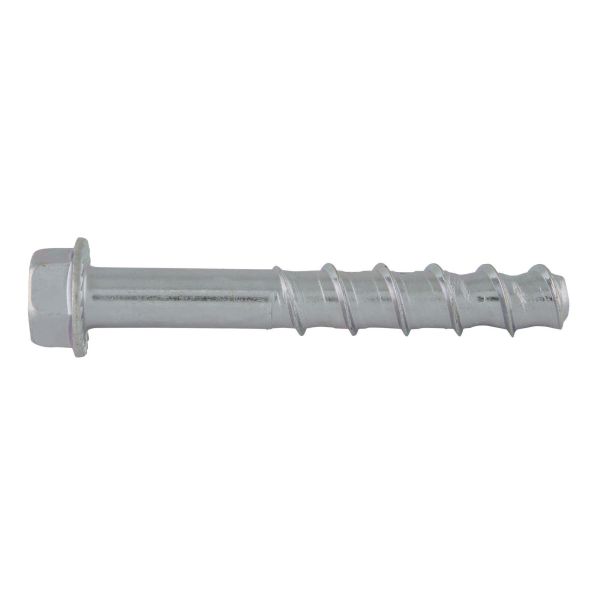

DeWALT PFM1411420
1/2 X 4" ZP SCREW BOLT
SKU
887650
DeWALT® Screw-Bolt+™ Screw Anchor, Heavy Duty, 1/2 in Diameter, 4 in Overall Length, Hex Washer Head Drive, Carbon Steel, 1-3/4 in Minimum Embedment Depth, Zinc Plated, Applicable Materials: Normal Weight Concrete, Lightweight Concrete, Concrete Over Steel Deck, Grouted Concrete Masonry and Brick Masonry, 31/64 in H Head, 2-1/4 in Maximum Work Thickness, 10705 lb Shear Strength, 4400 lb Tensile Strength
- Patented thread design offers low installation torque
- Low installation torque in concrete and masonry
- Ratchet teeth on underside of hex washer head lock against the fixture
- Fully removable and reinstallable in same hole
- Diameter, length and identifying marking stamped on head of each anchor
- Patented thread design offers toughened threads for tapping high strength concrete
- Universal product for concrete and grouted/solid masonry
- Can be installed closer to a free-edge than traditional expansion anchors
- Fast installation with powered impact wrench, but can also be installed manually
- One-piece, finished head design
- Quickly changes between 6 drivers to increase speed
| Material | Carbon Steel |
|---|---|
| Tensile Strength | 4400 lb |
| Maximum Work Thickness | 2-1/4 in |
| Diameter | 1/2 in |
| Type | Heavy Duty |
| Overall Length | 4 in |
| Applicable Materials | Normal Weight Concrete, Lightweight Concrete, Concrete Over Steel Deck, Grouted Concrete Masonry and Brick Masonry |
| Finish | Zinc Plated |
| Head Size | 31/64 in H |
| Head Drive Type | Hex Washer |
| Shear Strength | 10705 lb |
| Minimum Embedment Depth | 1-3/4 in |
| Brand | DeWalt |
