DeWALT PFM1411580

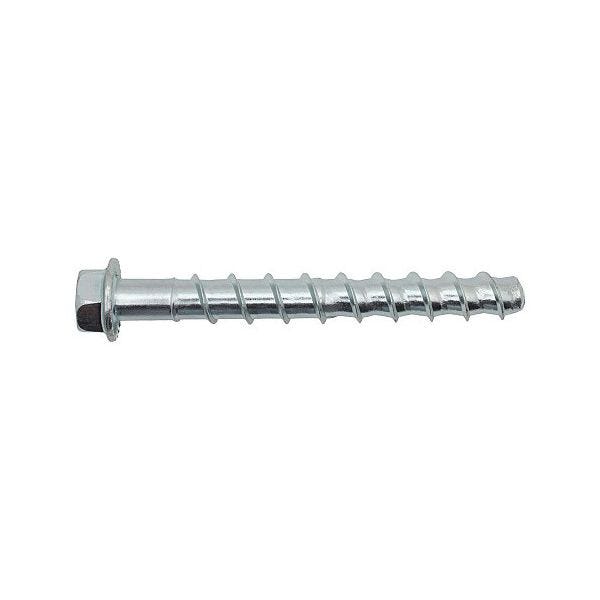

DeWALT® Screw-Bolt+™ Screw Anchor, Heavy Duty, 5/8 in Diameter, 4 in Overall Length, Hex Washer Head Drive, Carbon Steel, 2-1/2 in Minimum Embedment Depth, Zinc Plated, Applicable Materials: Normal Weight Concrete, Lightweight Concrete, Concrete Over Steel Deck, Grouted Concrete Masonry and Brick Masonry, 37/64 in H Head, 1-1/2 in Maximum Work Thickness, 17170 lb Shear Strength, 8885 lb Tensile Strength

• Designed for standard ANSI tolerance drill bits
• Low installation torque in concrete and masonry
• Ratchet teeth on underside of hex washer head lock against the fixture
• Fully removable and reinstallable in same hole
• Diameter, length and identifying marking stamped on head of each anchor
• Patented thread design offers toughened threads for tapping high strength concrete
• Universal product for concrete and grouted/solid masonry
• Can be installed closer to a free-edge than traditional expansion anchors
• Fast installation with powered impact wrench, but can also be installed manually
• One-piece, finished head design
• Ultimate load capacity: 5735 lb tensile strength when embedded in 2500 psi, 6285 lb tensile strength when embedded in 3000 psi, 7255 lb tensile strength when embedded in 4000 psi, 8885 lb tensile strength when embedded in 6000/8000 psi compressive strength concrete
• Ultimate load capacity - 10615 lb shear strength when embedded in 2500 psi, 11630 lb shear strength when embedded in 3000 psi, 13425 lb shear strength when embedded in 4000 psi, 16445 lb shear strength when embedded in 6000 psi and 17170 lb shear strength when embedded in 8000 psi compressive strength concrete
• Allowable load capacity - 1435 lb tensile strength when embedded in 2500 psi, 1570 lb tensile strength when embedded in 3000 psi, 1815 lb tensile strength when embedded in 4000 psi and 2220 lb tensile strength when embedded in 6000/8000 psi compressive strength concrete
• Allowable load capacity - 2655 lb shear strength when embedded in 2500 psi, 2910 lb shear strength when embedded in 3000 psi, 3355 lb shear strength when embedded in 4000 psi, 4110 lb shear strength when embedded in 6000 psi and 4295 lb shear strength when embedded in 8000 psi compressive strength concrete
