DeWALT PFM1411760
3/4 X 5" ZP SCREW BOLT
SKU
887653

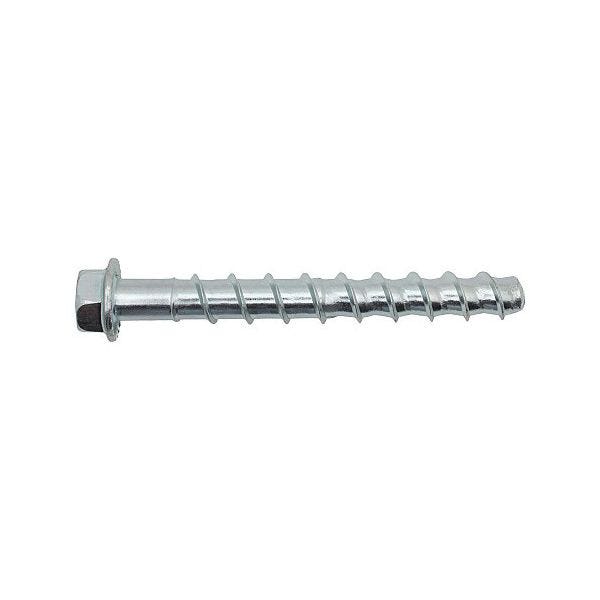

DeWALT® Screw-Bolt™ Screw Anchor, 1-Piece Heavy Duty High Performance, 3/4 in Diameter, 5 in Overall Length, Hex Washer Head Drive, Carbon Steel, 2-1/2 in Minimum Embedment Depth, 3/4 in Drill, Zinc Plated, Applicable Materials: Brick Masonry, Concrete Over Steel Deck, Grouted Concrete Masonry, Lightweight Concrete and Normal Weight Concrete, 43/64 in H Head
- Designed for standard ANSI tolerance drill bits
- Low installation torque in concrete and masonry
- Ratchet teeth on underside of hex washer head lock against the fixture
- Fully removable and reinstallable in same hole
- Diameter, length and identifying marking stamped on head of each anchor
- Patented thread design offers toughened threads for tapping high strength concrete
- Universal product for concrete and grouted/solid masonry
- Can be installed closer to a free edge than traditional expansion anchors
- Fast installation with powered impact wrench, but can also be installed manually
- 1-piece, finished head design
| Material | Carbon Steel |
|---|---|
| Diameter | 3/4 in |
| Type | 1-Piece Heavy Duty High Performance |
| Overall Length | 5 in |
| Applicable Materials | Brick Masonry, Concrete Over Steel Deck, Grouted Concrete Masonry, Lightweight Concrete and Normal Weight Concrete |
| Finish | Zinc Plated |
| Head Size | 43/64 in H |
| Head Drive Type | Hex Washer |
| Minimum Embedment Depth | 2-1/2 in |
| Drill Size | 3/4 in |
| Brand | DeWalt |
