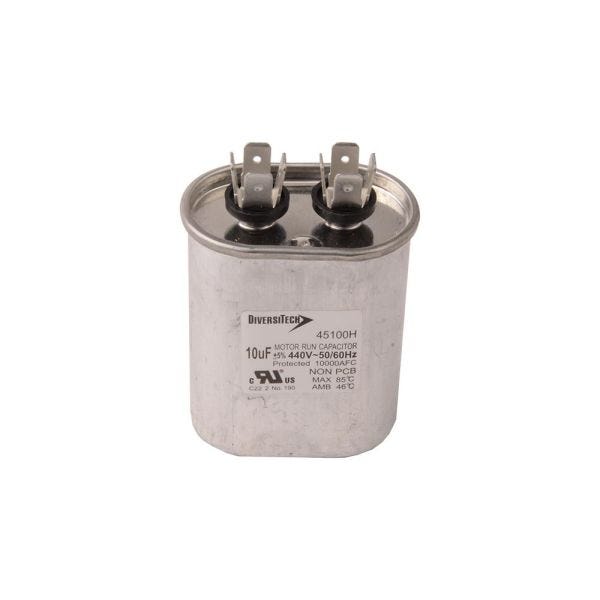

Diversitech 45100H
10MFD 440V OVAL CAPACITOR
SKU
446487
Diversitech Motor Run Capacitor, Single, 10 uF, 440 VAC, Oval, Metal Case, 50/60 Hz, +/- 5% Tolerance, 2.56 in H Case, Import
- Guaranteed for 10000 hr of life under normal operating conditions
- Operating life of 94 percent at 60000 hours
- Meets 10000 AFC safety requirement per UL 810
- Individually packaged
- Between terminals: Rated voltage x 1.75 VAC, 10 s withstand voltage test
- Between terminals and case: Rated voltage x 2+1000 VAC, 60 s withstand voltage test
- Maximum permissible voltage: 110 percent of the rated voltage
- Maximum permissible current: 130 percent of the rated current
- Oil filled, non PCB
- 1/4 in quick connect terminal
| Capacitance | 10 uF |
|---|---|
| Type | Single |
| Domestic/Import | Import |
| Specifications | 50/60 Hz, +/- 5% Tolerance, 2.56 in H Case |
| Voltage Rating | 440 VAC |
| Case Material | Metal |
| Shape | Oval |
| Brand | Diversitech |
