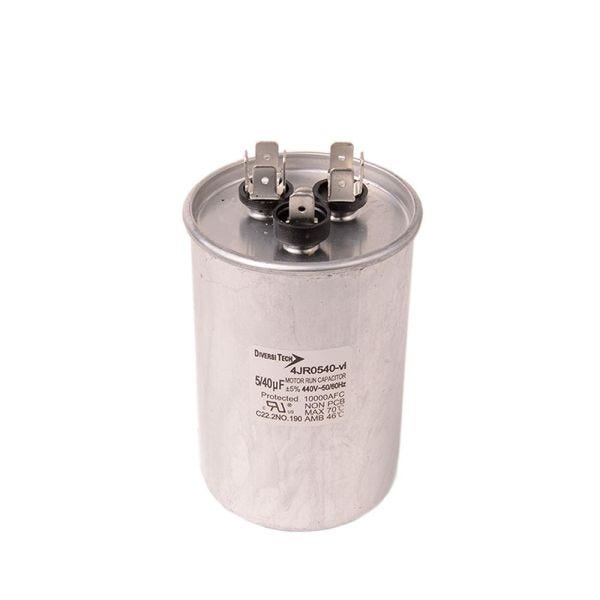

Diversitech 4JR0540
40+5 UF 440VAC MTR RUN CAPACIT
SKU
656784
Diversitech Motor Run Capacitor, Dual, 40/5 uF, 400 VAC, Round, Metal Case, 50/60 Hz, +/- 5% Tolerance, 3.54 in H Case, Import
- Guaranteed for 10000 hr of life under normal operating conditions
- Operating life of 94 percent at 60000 hours
- Meets 10000 AFC safety requirement per UL 810
- Individually packaged
- Between terminals: rated voltage x 1.75 VAC, 10 sec withstand voltage test
- Between terminals and case: rated voltage x 2+1000 VAC, 60 sec withstand voltage test
- Maximum permissible voltage: 110 percent of the rated voltage
- Maximum permissible current: 130 percent of the rated current
- Oil filled, Non PCB
- 1/4 in quick connect terminals
| Capacitance | 40/5 uF |
|---|---|
| Type | Dual |
| Domestic/Import | Import |
| Specifications | 50/60 Hz, +/- 5% Tolerance, 3.54 in H Case |
| Voltage Rating | 400 VAC |
| Case Material | Metal |
| Shape | Round |
| Brand | Diversitech |
