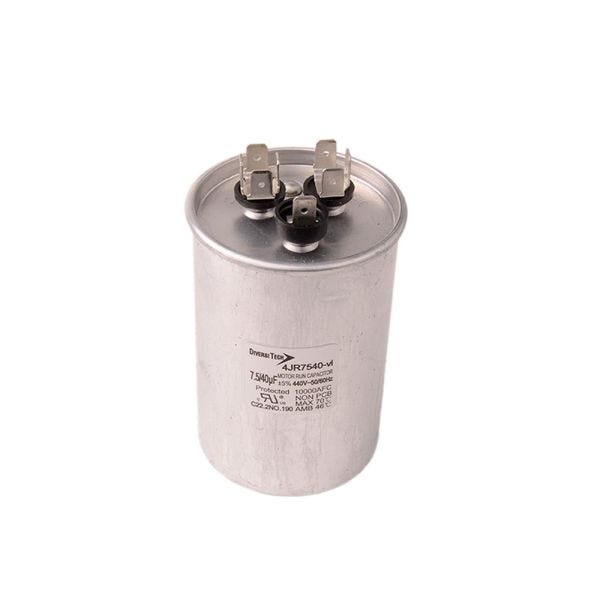

Diversitech 4JR7540
40+7.5 UF 440VAC MTR RUN CAPAC
SKU
656870
Diversitech Motor Run Capacitor, Dual, 40/7.5 uF, 440 VAC, Round, Metal Case, 50/60 Hz, +/-5% Tolerance, 4.72 in H Case, Silver, 4.72 in H Case, Import
- Guaranteed for 10000 hr of life under normal operating conditions
- Operating life of 94% at 60000 hr
- Meets 10000 AFC safety requirement per UL 810
- Between terminals: Rated voltage x 1.75 VAC, 10 s withstand voltage test
- Between terminals and case: Rated voltage x 2+1000 VAC, 60 s withstand voltage test
- Maximum permissible voltage: 110% of the rated voltage
- Maximum permissible current: 130% of the rated current
- Oil filled, non PCB
- 1/4 in quick connect terminal
- -40 to 70 deg C permissible temperature
| Capacitance | 40/7.5 uF |
|---|---|
| Color | Silver |
| Type | Dual |
| Dimensions | 4.72 in H Case |
| Domestic/Import | Import |
| Specifications | 50/60 Hz, +/-5% Tolerance, 4.72 in H Case |
| Voltage Rating | 440 VAC |
| Case Material | Metal |
| Shape | Round |
| Brand | Diversitech |
