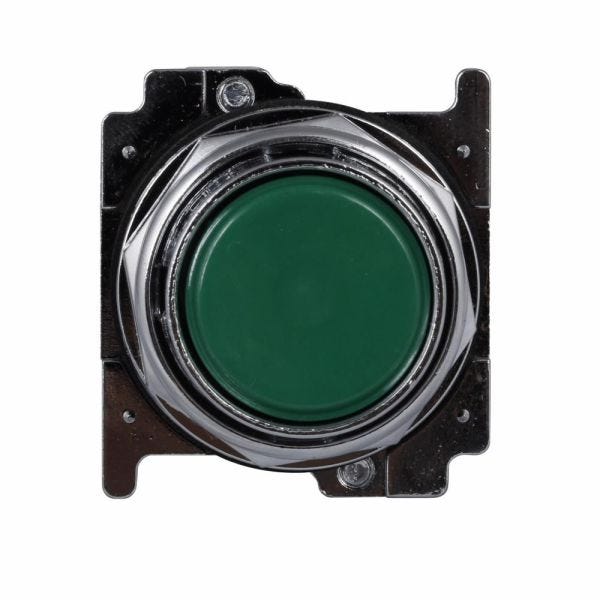

EATON 10250T23G
FLUSH PB GREEN 1NO
SKU
696714
EATON Non-Illuminated Pushbutton, Heavy Duty Oil/Watertight Standard, Series: 10250T, 30.5 mm Size, 1NO Contact Configuration, Momentary Contact Mode, 10 A at 600 VAC Contact, Bezel/Housing: Polished Chrome Bezel, Flush Button Actuator, Screw Terminal, NEMA 3/3R/4/4X/12/13 Enclosure, Flush Mounting, Die-Cast Zinc, Polished Chrome, Green
- Heavy duty die-cast zinc construction
- Enclosed silver contacts with reliability nibs
- Diaphragm seals with drainage holes
- Grounding nibs on the operator casing
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Drainage holes prevent build-up of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs bit through paint and other coatings to provide secure ground
| Bezel/Housing | Polished Chrome Bezel |
|---|---|
| Contact Mode | Momentary |
| Series | 10250T |
| Size | 30.5 mm |
| Contact Configuration | 1NO |
| Contact Rating | 10 A at 600 VAC |
| Enclosure Type | NEMA 3/3R/4/4X/12/13 |
| Color | Green |
| Type | Heavy Duty Oil/Watertight Standard |
| Material | Die-Cast Zinc |
| Terminal Type | Screw |
| Mounting Type | Flush |
| Actuator | Flush Button |
| Finish | Polished Chrome |
| Brand | Eaton |
