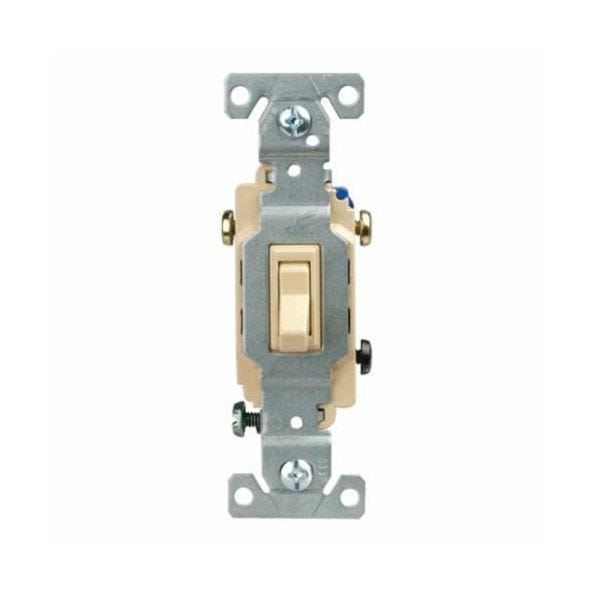

EATON Arrow Hart Toggle Switch, Grounding Standard/Specification Grade, Series: 1300, 120 V, 15 A, 1/2 hp Power, 1 Pole, Framed Toggle Actuator, Wall Mounting, Side Wire/Push-In/Screw Terminal, Polycarbonate/PVC/Thermoplastic, Ivory, Environmental Conditions: -20 to 60 deg C Operating Temperature, 0.75 in W x 0.88 in D Dimensions
- Long, broad mounting strap virtually eliminates floating installations
- Push-in terminals accept 14 AWG solid wire for quick installation
- Side wire terminals accept up to 10 AWG solid wire
- 3-way switches feature additional push-in common termination for feed thorough tapping
- Patented built-in wire stripper for 14 and 12 AWG wire to speed installation
- Patented built-in wire looper for pre-looping
- Tri-combo screws accept slotted, Phillips® and Robertson head tools for installation flexibility
- Lighted toggle glows in Off position
- 3.28 in L screw to screw
- 2.31 in L back
| Dimensions | 0.75 in W x 0.88 in D |
|---|---|
| Power Rating | 1/2 hp |
| Voltage Rating | 120 V |
| Series | 1300 |
| Mounting | Wall |
| Environmental Conditions | -20 to 60 deg C Operating Temperature |
| Color | Ivory |
| Type | Grounding Standard/Specification Grade |
| Number of Poles | 1 |
| Material | Polycarbonate/PVC/Thermoplastic |
| Terminal Type | Side Wire/Push-In/Screw |
| Amperage Rating | 15 A |
| Actuator | Framed Toggle |
| Brand | Eaton |
| Amperage | 15 Amp |
| Type | Toggle |
| Voltage | 120V |
| Color | Ivory |
