EATON 816W-BOX
15A 250V 2P3W WH SINGLE
SKU
676538

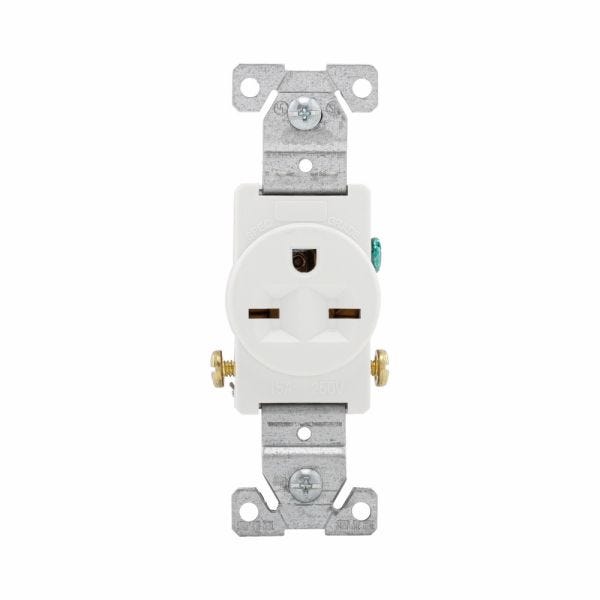

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Single, 250 VAC, 15 A, 2 Pole, 3 Wires, NEMA 6-15R NEMA Rating, Commercial Grade, -4 to 158 deg F, Side Wire/Screw Terminal, Nylon, White, 1.3 in L x 0.82 in W x 4.19 in H Dimensions
- Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw catch feature on duplex devices speeds mounting of wallplates
- PVC bottom housing
- 2000 VAC dielectric strength
- Nylon insulation
- Flush mounting
- 14 to 10 AWG wire terminal
| Dimensions | 1.3 in L x 0.82 in W x 4.19 in H |
|---|---|
| Amperage Rating | 15 A |
| Color | White |
| Grade | Commercial |
| Voltage Rating | 250 VAC |
| Number of Wires | 3 |
| Material | Nylon |
| Temperature Rating | -4 to 158 deg F |
| Number of Poles | 2 |
| Type | Single |
| NEMA Rating | NEMA 6-15R |
| Terminal Type | Side Wire/Screw |
| Brand | Eaton |
| Color | White |
| Voltage | 250V |
| Type | Straight Blade |
| Amperage | 15A |
| Number | Single |
