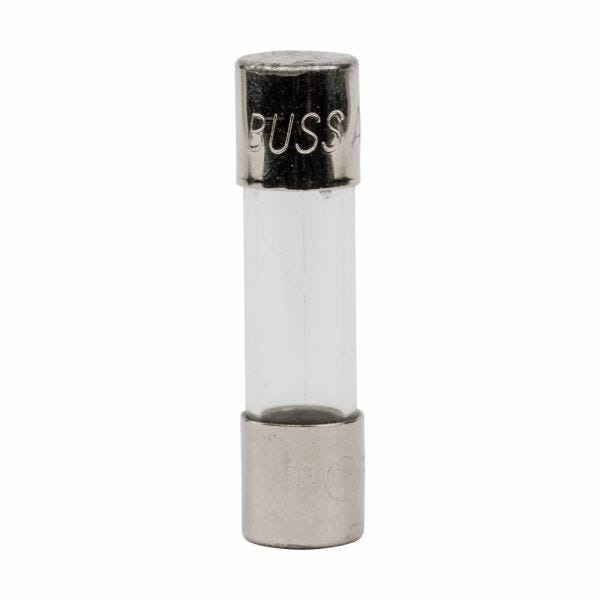

Bussmann AGX-1/4
1/4A 250V GLASS FUSE
SKU
701281
Bussmann, AGX-1/4, Fast Acting Fuse, Small Dimension, Series: AGX, Non-Indicating, Rejection, 0.25 A, 250 VAC, 35 A, 10 kA Interrupt, 4 hr, 60 min, 5 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1 in L Body
- Size rejects insertion of other fuse types
- 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- Nickel plated brass end caps
- 4 hr minimum at 110% of ampere rating, 60 min maximum at 135% of ampere rating, 5 s maximum at 200% of ampere rating response time
| Body Type | Cylindrical |
|---|---|
| Material | Glass |
| Element | Single |
| Indicating/Non-Indicating | Non-Indicating |
| Terminal Type | Ferrule |
| Body Size | 1/4 in Dia x 1 in L |
| Rejection/Non-Rejection | Rejection |
| Type | Small Dimension |
| Response Time | 4 hr, 60 min, 5 s |
| Series | AGX |
| Interrupt Rating | 35 A, 10 kA |
| Mounting Type | Holder |
| Voltage Rating | 250 VAC |
| Amperage Rating | 0.25 A |
| Brand | Eaton |
