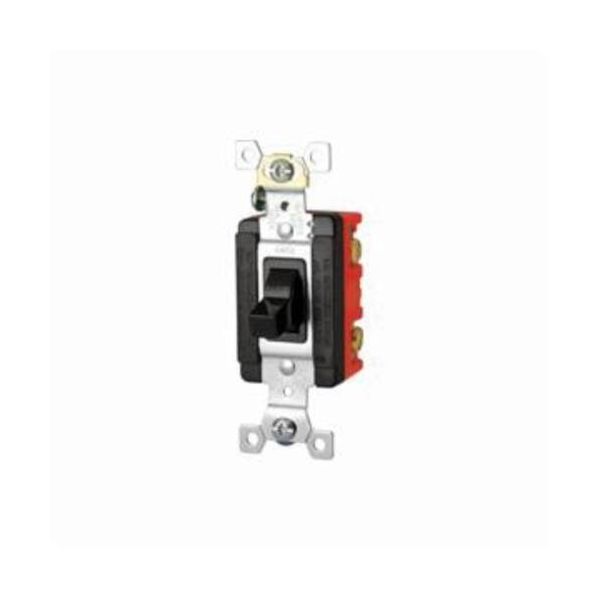

Eaton Wiring Devices AH6810G

Eaton Wiring Devices Manual Motor Controller, Heavy Duty, 600 VAC, 30 A, 1, 2 Pole, DPST, Toggle Actuator, NEMA 1, -20 to 65 deg C, 2.92 in W x 2.63 in D x 4.25 in H, Nylon

• Two-position maintained contact switch, single throw
• Compact design provides extra wiring room
• High impact-resistant, glass filled nylon construction
• Easy-to-read electrical ratings on rugged steel mounting straps
• Highly visible "ON/OFF" markings on large, rugged toggles
• Distinct wire pockets and thick-wall arc barriers prevent strands from straying
• Screw and clamp or box lug terminals to meet individual project requirements
• Two sets of contacts per pole distribute load and make/break action for long, reliable duty
• 2 hp at 120 VAC 1 phase, 5 hp at 240 VAC 1 phase, 7.5 hp at 480/600 VAC 1 phase horsepower
• Two-position, maintained contact, single throw, wiring type front wire, back, side and front wire connection
• Iron back box with galvanized and acrylic paint finish copperless aluminum
• Back and side wire screw, front wired screw or front wired screw and clamp, cold rolled steel enclosure, glass filled nylon material, polyester urethane painted finish, DPST operation
• Cooper wiring devices builds manual contactors to meet the demands of a variety of indoor and outdoor environments
• Totally enclosed body eliminates exposed contacts
• Enclosures can be padlocked to conform to OSHA lockout requirements
• Cam and roll design provides dependable, trouble-free switch action
• Double-break, silver alloy, butt-type contacts provide long life
• Separate arc-quenching chambers isolate each pole
• Front terminals are designed for easy wiring
• Enclosure with switch, single phase
