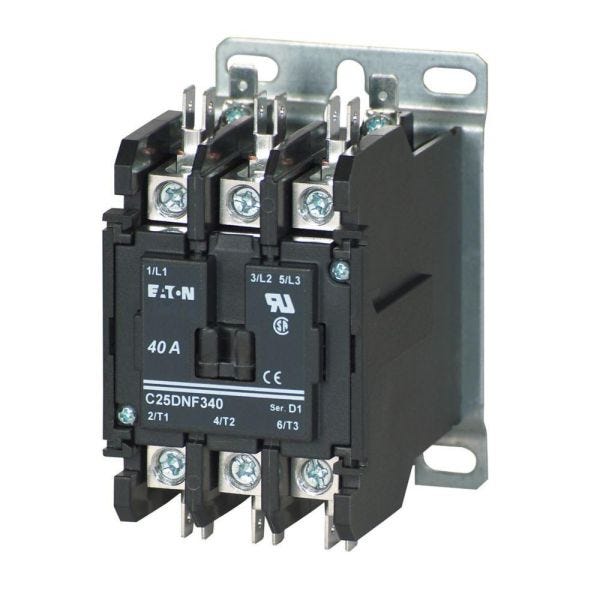

EATON C25DNF340C
DEF PURP CONT 480V 3P
SKU
884982
EATON Definite Purpose AC Contactor, Non-Reversing, 440 to 480 VAC Coil, 40 A Inductive/50 A Resistive Maximum Load Current, 3 Pole, 50/60 Hz Frequency, Double Break Contact, Quick-Connect (Side by Side) Connection, Box Lug (Posi Drive Setscrew) Terminal, Open Enclosure, 150 deg F Ambient Operating, 3.35 in L x 2.4 in W x 3.75 in H Dimensions
- Open with metal mounting plate
| Type | Non-Reversing |
|---|---|
| Frequency Rating | 50/60 Hz |
| Enclosure Type | Open |
| Contact Type | Double Break |
| Number of Poles | 3 |
| Connection Type | Quick-Connect (Side by Side) |
| Dimensions | 3.35 in L x 2.4 in W x 3.75 in H |
| Terminal Type | Box Lug (Posidrive Setscrew) |
| Operating Temperature | 150 deg F Ambient |
| Coil Voltage | 440 to 480 VAC |
| Maximum Load Current | 40 A Inductive/50 A Resistive |
| Brand | Morris |
