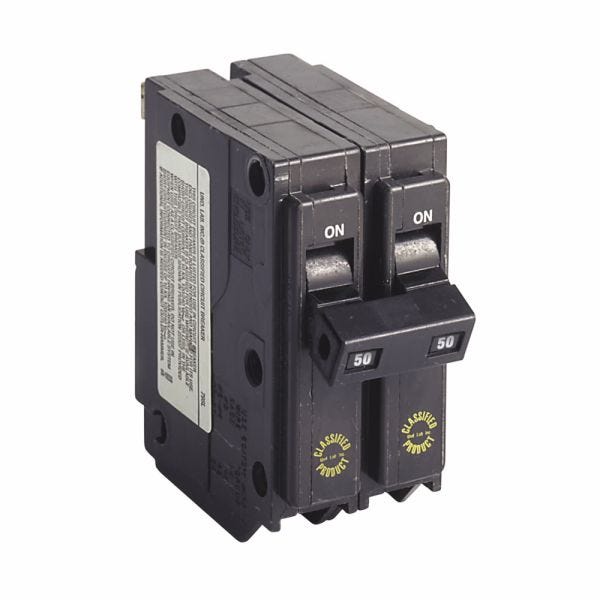

EATON CHQ250
BOS - 240V, 50A, 2POLE BREAKER
SKU
665225
EATON Replacement Thermal Magnetic Circuit Breaker, Type CHQ Classified Ground Fault, 120/240 VAC, 50 A, 10 kAIC Interrupt, Common Trip, 2 Pole, 1 ph, Toggle Handle Actuator, Box Lug, (1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum Wire, Plug-On Mount, 60 to 75 deg C, 2-1/2 in L x 1-1/2 in W x 3 in H
- One 14 to 8 AWG, (2) 14 to 10 AWG copper aluminum at 60 to 75 deg C wire
- UL classified breakers are produced by one manufacturer for use in place of the breakers specified on the panelboard like specified breakers, UL classified breakers have been tested in the panels for which they are approved
- Classified breakers are tested extensively in numerous General Electric®, Siemens®, Murray®, T&B®, Square D™ and Crouse-Hinds® panels
- Classified circuit breaker that is considered suitable, by a qualified third party organization, for use in another manufacturer's panelboard
| Phase | 1 ph |
|---|---|
| Wire Size | (1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum |
| Type | Type CHQ Classified Ground Fault |
| Temperature Rating | 60 to 75 deg C |
| Number of Poles | 2 |
| Connection Type | Box Lug |
| Mounting Type | Plug-On |
| Dimensions | 2-1/2 in L x 1-1/2 in W x 3 in H |
| Actuator Type | Toggle Handle |
| Interrupt Rating | 10 kAIC |
| Amperage Rating | 50 A |
| Trip Type | Common |
| Voltage Rating | 120/240 VAC |
| Brand | Eaton |
