EATON CS6365
AR PLG 3P4W50A125/250
SKU
700225

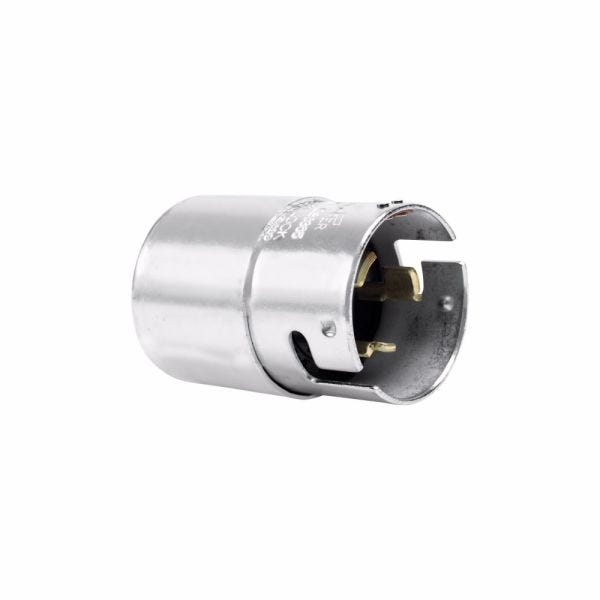

EATON Eaton Wiring Devices Arrow Hart™ Hart-Lock® Locking Plug, Armored California Standard, 125/250 VAC, 50 A, 3 Pole, 4 Wires, Industrial Grade, 0.68 to 1.13 in Diameter Cord, -40 to 95 deg C, Screw Terminal, Cold Rolled Steel, 2.31 in Dia x 4.5 in L Dimensions
- Pro-grip lock provides visual confirmation that device is assembled properly
- Deep tapered wire wells accept up to 4 AWG UL wire key for long cable runs
- Glass filled nylon body for superior strength and heat performance
- Unique 3-step assembly process for Pro-grip plugs and connectors
- 1-piece heavy duty plated mounting strap
- Stainless steel Tri-combo assembly screws
- Receptacles utilize rugged, 1-piece plated mounting strap for corrosion-resistance
- Zinc plated cold rolled steel outer shell, glass filled nylon interior body/terminal retainer
- Non-NEMA configuration
- 10 to 6 AWG wire
- Industrial grade high current plug
| Grade | Industrial |
|---|---|
| Number of Poles | 3 |
| Type | Armored California Standard |
| Dimensions | 2.31 in Dia x 4.5 in L |
| Amperage Rating | 50 A |
| Number of Wires | 4 |
| Cord Diameter | 0.68 to 1.13 in |
| Voltage Rating | 125/250 VAC |
| Temperature Rating | -40 to 95 deg C |
| Material | Cold Rolled Steel |
| Terminal Type | Screw |
| Brand | Eaton |
| Style | Locking |
| Type | Plugs |
