EATON DF10P-C1
EATON 0-10 DECORA DIM WH/IV/LA
SKU
914199

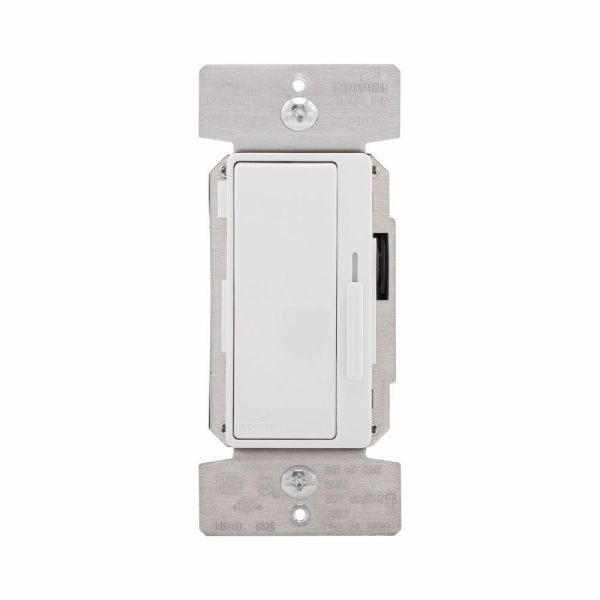

EATON Dimmer Switch, 3-Way Decorator, 120/277 VAC, 1200/1660 W Power, 60 Hz Frequency, 1 Pole, Fluorescent/LED Lamp, Preset Start, ON/OFF Control, Screw Terminal, -4 to 158 deg F, Polycarbonate, Almond/Ivory/White, 2.1 in L x 3.8 in W x 5.9 in H Dimensions
- Wallbox sensors
- Preset feature allows user to return to previous light level when turning lights ON
- Integrated full-slide control for easy, precise operation
- Can be wired as single pole or 3-way
- Neutral is not required for installation of device
- Adjustable high level trim setting for optimal lamp compatibility
- Faceplate is removable to allow for color changes
- Electrostatic discharge protection
- Compatible with EATON decorator style devices and wallplates
| Start Type | Preset |
|---|---|
| Temperature Rating | -4 to 158 deg F |
| Frequency Rating | 60 Hz |
| Number of Poles | 1 |
| Type | 3-Way Decorator |
| Power Rating | 1200/1660 W |
| Terminal Type | Screw |
| Lamp Type | Fluorescent/LED |
| Control | ON/OFF |
| Dimensions | 2.1 in L x 3.8 in W x 5.9 in H |
| Color | Almond/Ivory/White |
| Material | Polycarbonate |
| Voltage Rating | 120/277 VAC |
| Brand | Eaton |
