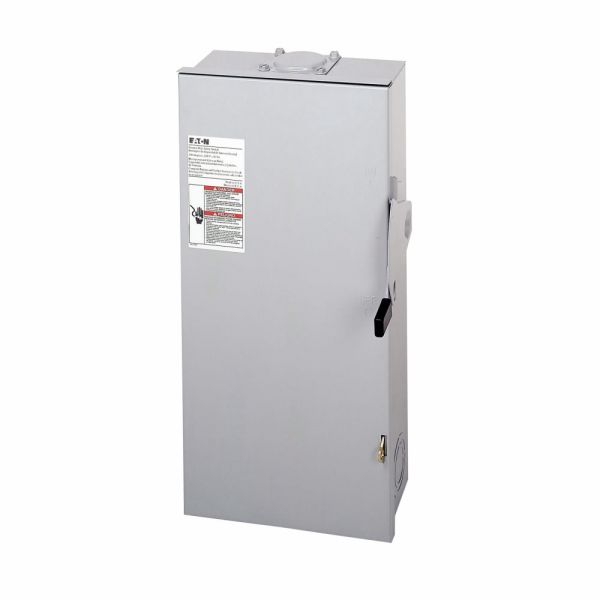

EATON DG223NRB
BOS - 100A 240V 2PN3RFUSEDISCO
SKU
643708
EATON Safety Switch, Cartridge Fusible General Duty, Series: DG Series, 240 VAC, 100 A, 7-1/2 to 15 hp, 15 to 30 hp, 1/3 ph, 2 Pole, 3 Wires, DPST Contact Form, NEMA 3R Enclosure, Surface Mounting, 6.42 in L x 8.82 in W x 7 in H Dimensions, Steel, Galvanized/Painted
- Ample wire bending space provides for easier installation
- Visible double-break quick make, Quick-break rotary blade mechanism
- Side opening door on all enclosures
- Mechanically interlocked cover to prevent easy access when the switch is in the ON position
- With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
- Clearly visible and accessible neutral where applicable
- Visible ON/OFF indications
- Tangential knockouts on 30 to 60 A designs
- Ample wiring space
- Double padlocking capability on 30 to 100 A
- Triple padlocking capability on 200 to 600 A
- Additional door locking capability
- Tri-lingual nameplates
- Design for series B general duty 30 to 100 A
| Material | Steel |
|---|---|
| Series | DG Series |
| Dimensions | 6.42 in L x 8.82 in W x 7 in H |
| Number of Poles | 2 |
| Enclosure Type | NEMA 3R |
| Phase | 1/3 |
| Mounting Type | Surface |
| Type | Cartridge Fusible General Duty |
| Contact Form | DPST |
| Voltage Rating | 240 VAC |
| Finish | Galvanized/Painted |
| Horsepower | 7-1/2 to 15 hp, 15 to 30 hp |
| Amperage Rating | 100 A |
| Number of Wires | 3 |
| Brand | Eaton |
