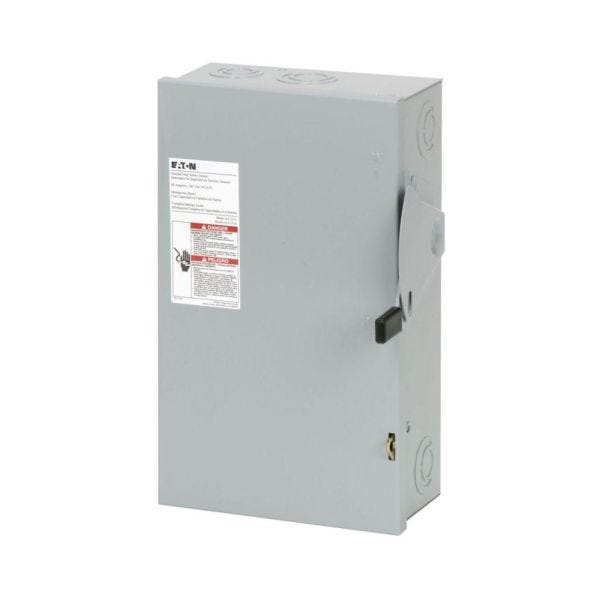

EATON DG322NGB
60 AMP 3 POLE FUSED 240V
SKU
676318
EATON Safety Switch, Cartridge Fusible General Duty, Series: DG Series, 240 VAC, 60 A, 3 to 10 hp, 7-1/2 to 15 hp, 1/3 ph, 3 Pole, 4 Wires, TPST Contact Form, NEMA 1 Enclosure, Panel Mounting, 6.41 in L x 8.4 in W x 7 in H Dimensions, Steel, Painted
- Ample wire bending space provides for easier installation
- Visible double-break quick make, Quick-break rotary blade mechanism
- Side opening door on all enclosures
- Mechanically interlocked cover to prevent easy access when the switch is in the ON position
- With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
- Clearly visible and accessible neutral where applicable
- Visible ON/OFF indications
- Tangential knockouts on 30 to 60 A designs
- Ample wiring space
- Double padlocking capability on 30 to 100 A
- Triple padlocking capability on 200 to 600 A
- Additional door locking capability
- Tri-lingual nameplates
- Design for series B general duty 30 to 100 A
| Material | Steel |
|---|---|
| Series | DG Series |
| Dimensions | 6.41 in L x 8.4 in W x 7 in H |
| Number of Poles | 3 |
| Enclosure Type | NEMA 1 |
| Phase | 1/3 |
| Mounting Type | Panel |
| Type | Cartridge Fusible General Duty |
| Contact Form | TPST |
| Voltage Rating | 240 VAC |
| Finish | Painted |
| Horsepower | 3 to 10 hp, 7-1/2 to 15 hp |
| Amperage Rating | 60 A |
| Number of Wires | 4 |
| Brand | Eaton |
