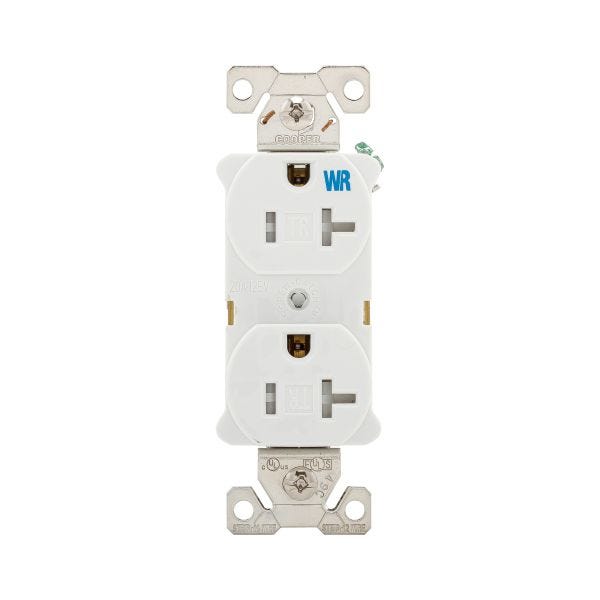

EATON TWRBR20W-SPL
TAMPER WEATHER 20A DUPLEX
SKU
873211
EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Duplex Tamper/Weather-Resistant, Series: TWRBR, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -4 to 158 deg F, Screw Terminal, Nylon, White, 4 in H x 3.28 in W x 1.24 in D Dimensions
- Provides compliance with 2014 NEC Article 406.9 that states that all receptacles installed in wet and damp locations must be weather-resistant
- Manufactured with the highest grade materials, durable impact-resistant thermoplastic face and back body is virtually unbreakable
- TR designation provides visual identification that device has Tamper-resistant shutters preventing the insertion of foreign objects
- WR indicates weather-resistant devices are installed
- Terminal screws are backed out and ready-to wire
- Extra long and extra wide mounting straps
- Patented built-in wire stripper for 12 and 14 AWG wire to speed installation
- Side wire terminals accept up to 10 AWG solid/stranded wire
- Nylon insulation
- Flush mounting
- 14 to 10 AWG wire terminal
| Dimensions | 4 in H x 3.28 in W x 1.24 in D |
|---|---|
| Amperage Rating | 20 A |
| Color | White |
| Grade | Commercial |
| Voltage Rating | 125 VAC |
| Number of Wires | 3 |
| Material | Nylon |
| Temperature Rating | -4 to 158 deg F |
| Number of Poles | 2 |
| Type | Duplex Tamper/Weather-Resistant |
| NEMA Rating | NEMA 5-20R |
| Terminal Type | Screw |
| Series | TWRBR |
| Brand | Eaton |
| Color | White |
| Voltage | 125V |
| Type | Straight Blade |
| Amperage | 20A |
| Number | Duplex |
| Style | Tamper Resistant |
