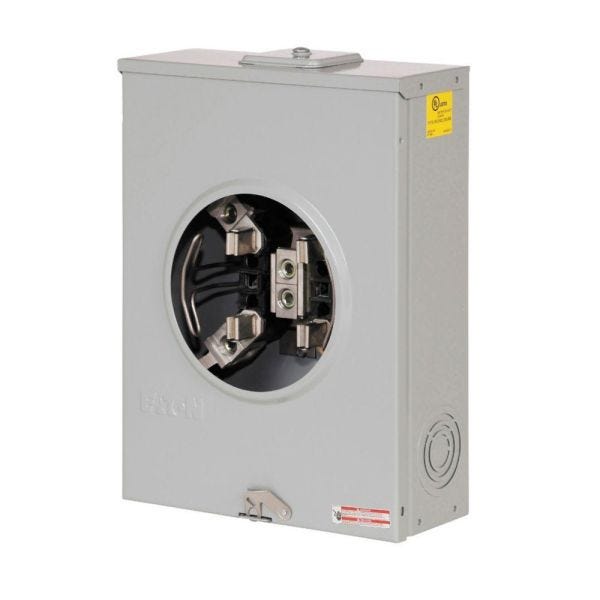

EATON UHTRS213CE
200A 1PH METER CABINET
SKU
725663
EATON Meter Socket, 1-Position Horn Bypass Triplex Ground, 600 VAC, 200 A, 1 ph, Bottom/Overhead/Top/Underground Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Small Closed/Coverplate, 3-5/16 in Hub, Ringless Cover, Line/Load Terminal, Flush Mount, 4.48 in L x 11.22 in W x 15.11 in H
- Block assembly base exceeds 400 in-lb of torque provides durability under the most extreme installation circumstances
- One-piece, die-run enclosure eliminates tampering and extends product life
- High visibility EATON name embossed on cover
- Knockouts are installer friendly, labor savings, less time needed for removing knockouts
- Oversized 7/8 in Dia, heavy duty, steel lug screws stronger connection component facilitates a reliable wire termination
- Slide nuts are captive allow for ease in installation of conductors and eliminates lost components
- Horn bypass kit is field installable by changing out slide nut, integral triplex or quadplex ground extruded in neutral lugless inventory required and field modifications are simple
- One-piece for terminating incoming/outgoing neutral conductors, which increases integrity of connections
- 100% plated bridge with four point mounting, zinc chromate plated to provide superior corrosion resistance
- Rating up to 200 kA interrupt rating with specified overcurrent protection devices
- Provides a complete EATON residential solution
- Copper plated alloy jaws with reinforcing spring
- Steel reinforcing springs used in all socket jaws to maintain electrical connections
| Hub Type | Small Closed/Coverplate |
|---|---|
| Terminal Type | Line/Load |
| Feed Type | Bottom/Overhead/Top/Underground |
| Mounting Type | Flush |
| Type | 1-Position Horn Bypass Triplex Ground |
| Phase | 1 ph |
| Dimensions | 4.48 in L x 11.22 in W x 15.11 in H |
| Hub Size | 3-5/16 in |
| Wire Size | 6 AWG to 350 kcmil |
| Voltage Rating | 600 VAC |
| Number of Jaws | 4 |
| Amperage Rating | 200 A |
| Cover Type | Ringless |
| Brand | Eaton |
