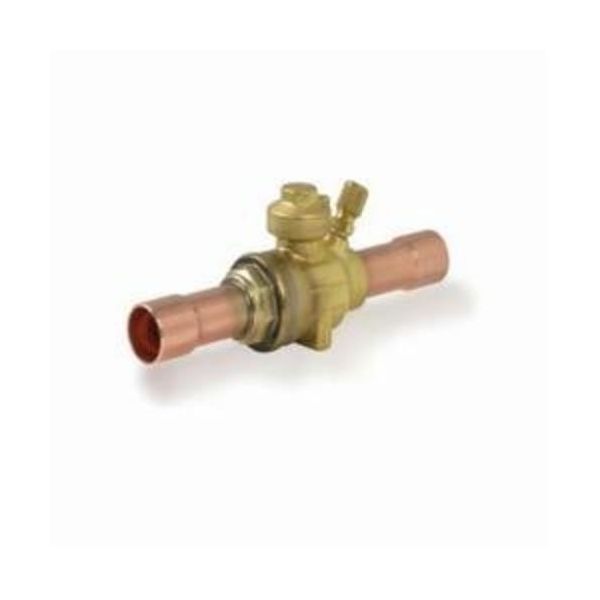

Parker 502058
7/8"OD SOLDER REFRIG BALL VALV
SKU
896568
Parker® Ball Valve, Bi-Directional, Series: EBVP, 7/8 in Nominal, ODF, 700 psi, -40 to 325 deg F, Full Port, Polished Brass Ball, Brass Body, PTFE Softgoods, 7.25 in L x 2.63 in H
- Ball internal relief port design ensures positive shut-off in either flow direction, even during system evacuation
- Dual PTFE seals surround the polished, brass ball to prevent leakage
- Stem seal and stem washer provide the primary stem seal
- Bottom load stem for safety
- All EBVP and EBVP-PZK ball valves are bi-directional and may be installed in any position
- 3/4 in port
- 30.3 Cv flow co-efficient
- EBVP ball valves are suitable for use with R-22, R-134a, R-404A, R-407A, R-407C, R-407F, R-410A, R-422D, R-448A, R-449A, R-450A, R-507 and R-513A
- -40 to 300 deg F full refrigeration service temperature range
- Stainless steel stop plate ensures fully open to fully closed with a 1/4-turn
- PTFE seal
| Nominal Size | 7/8 in |
|---|---|
| Temperature Rating | -40 to 325 deg F |
| Series | EBVP |
| Body Material | Brass |
| Port Type | Full |
| Ball Material | Polished Brass |
| Softgoods Material | PTFE |
| End Style | ODF |
| Pressure Rating | 700 psi |
| Dimensions | 7.25 in L x 2.63 in H |
| Type | Bi-Directional |
| Brand | Zoomlock |
