EATON ECNR30
30A 250V FUSE CLASS RK5
SKU
766421

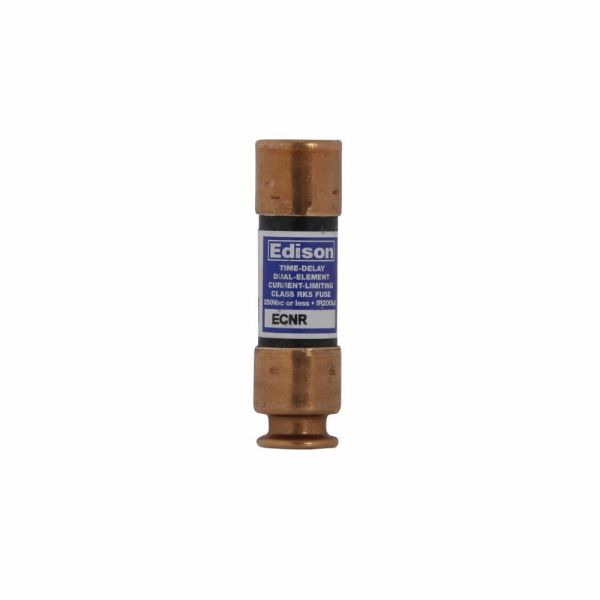

EATON Edison Bullet™ Time Delay Fuse, Current Limiting, Series: ECNR, Non-Indicating, Rejection, 30 A, 250 VAC/125 VDC, 200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule End x Ferrule End Terminal, Cylindrical Body, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body
- True dual element construction allows sizing of 125% FLA for motor backup protection
- Superior overload and cycling capabilities
- Current limiting provides component short circuit protection
| Class | RK5 |
|---|---|
| Body Size | 0.56 in Dia x 2 in L |
| Element | Dual |
| Material | Fiberglass |
| Response Time | 10 s at 500% |
| Series | ECNR |
| Voltage Rating | 250 VAC/125 VDC |
| Indicating/Non-Indicating | Non-Indicating |
| Terminal Type | Ferrule End x Ferrule End |
| Type | Current Limiting |
| Body Type | Cylindrical |
| Amperage Rating | 30 A |
| Rejection/Non-Rejection | Rejection |
| Interrupt Rating | 200 kA |
| Brand | Eaton |
| Class | RK-5 |
