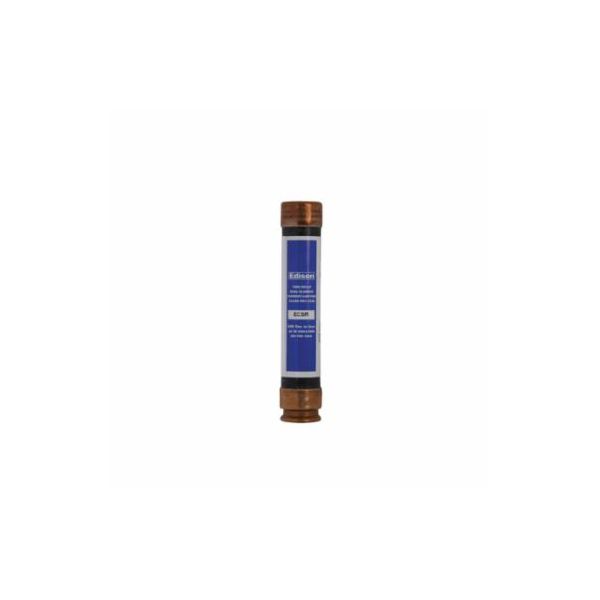

EATON ECSR40
40A 600V FUSE CLASS RK5
SKU
895371
EATON Edison Bullet™ Time Delay Fuse, Current Limiting, Series: ECSR, Non-Indicating, Rejection, 40 A, 600 VAC, 200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule End x Ferrule End Terminal, Holder Mounting, Bullet Body, Dual Element, 1.06 in Dia x 5.5 in L Body
- True dual element construction allows sizing of 125% FLA for motor backup protection
- Superior overload and cycling capabilities
- Current limiting provides component short circuit protection
- Provides motor overload ground fault and short circuit protection
- Provides a good deg of short circuit protection (greater current limitation to help protect downstream components from high fault current
- The time delay feature makes it possible to use fuse amp ratings, which are much smaller than those of non-time delay fuses
- Considerable cost saving occurs by permitting the use of smaller size switches, panels and fuses themselves
- Helps protect motors against burnout from overloads and single phasing when sized properly
- Gives motor running back-up protection to motors without extra costs
| Class | RK5 |
|---|---|
| Body Size | 1.06 in Dia x 5.5 in L |
| Element | Dual |
| Response Time | 10 s at 500% |
| Series | ECSR |
| Voltage Rating | 600 VAC |
| Indicating/Non-Indicating | Non-Indicating |
| Mounting Type | Holder |
| Terminal Type | Ferrule End x Ferrule End |
| Type | Current Limiting |
| Body Type | Bullet |
| Amperage Rating | 40 A |
| Rejection/Non-Rejection | Rejection |
| Interrupt Rating | 200 kA |
| Brand | Eaton |
| Class | RK-5 |
