White-Rodgers 3L09-5
LIMIT 160-40 3.12" LGTH W/R
SKU
659154

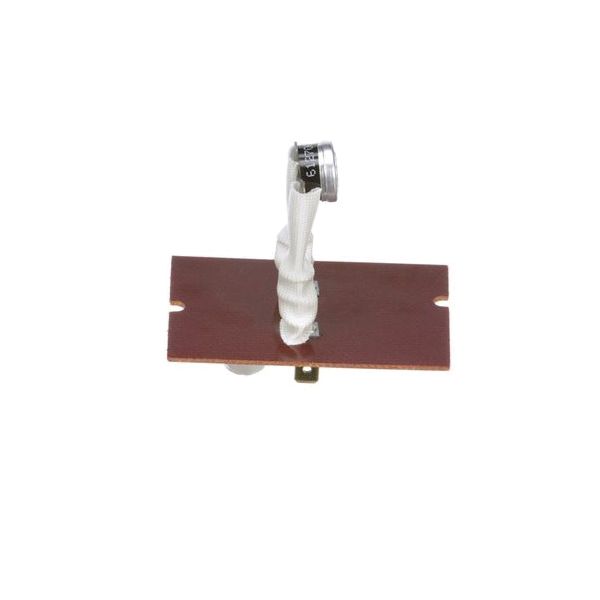

White-Rodgers™ Snap Disc Limit Control, Automatic Reset, Series: 3L09, Open on Rise Switch Action, SPST Contact Form, 140 deg F Cut-In/160 deg F Cut-Out, 5.8/34.8 A at 120 VAC, 2.9/13A at 240 VAC Inductive, 15 A at 120 VAC, 13 A at 240 VAC Resistive, 125 VA Pilot Duty, Board Mounting, 1.23 in L x 1.32 in W x 0.37 in H
- Proven reliability in a compact, versatile, cost-effective design
- Provides high-speed contact separation
- OEM replacement for competitive models
- Therm-O-Disc style 612706, type 36T
| Type | Automatic Reset |
|---|---|
| Mounting Type | Board |
| Dimensions | 1.23 in L x 1.32 in W x 0.37 in H |
| Contact Form | SPST |
| Pilot Duty Rating | 125 VA |
| Resistive Rating | 15 A at 120 VAC, 13 A at 240 VAC |
| Inductive Rating | 5.8/34.8 A at 120 VAC, 2.9/13A at 240 VAC |
| Switch Action | Open on Rise |
| Temperature Rating | 140 deg F Cut-In/160 deg F Cut-Out |
| Series | 3L09 |
| Brand | White-Rodgers |
