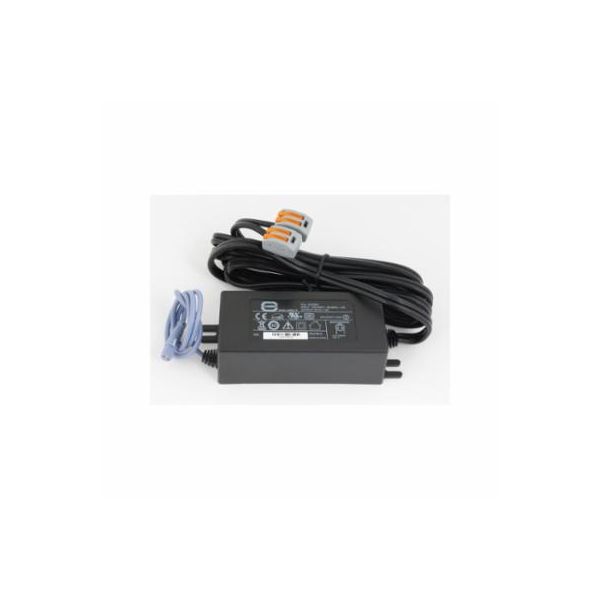

Chicago Faucet EQ-005JKNF
CHICAGO HARD WIRE TRANSFORMER
SKU
892590
Chicago Faucet® Hard-Wire Transformer, For Use With: EQ Series Electronic Faucet, 100 to 240 VAC, 50/60 Hz, 1.5 A Input/6 VDC, 1 A, 6 W Max Output
- Input power supply 100 to 240 VAC, 50 to 60 Hz, 1.5 A (US Class 2A)
- Output voltage 6 VDC, 1 A, 6 W max
- UL 18 AWG cable with WAGO hardwire connector, 79 in (200 cm) long input cable and connection
- IP65 waterproof connector (gray), UL 18 AWG cable, 16 in (40 cm) long output cable and connection
- Fully potted power supply with polycarbonate case for protection to IP 55
- 87% efficiency < average in active mode; 0.3W>= no load
- Conforms to energy star EPS level 5
- EN61601-1-2 :2001, EN61000-3-2, EN61000-3-3 EN61000-4-6, EN61000-4-8, EN61000-4-11 electromagnetic compatibility
- For wall mounting, alternate installation in standard 4 in junction box
- Emergency brownout protection for up to 1 EQ faucet
- Capable to power up to 6 EQ Faucet
| Suitable For Use With | EQ Series Electronic Faucet |
|---|---|
| Specifications | 100 to 240 VAC, 50/60 Hz, 1.5 A Input/6 VDC, 1 A, 6 W Max Output |
| Brand | Chicago Faucet |
