TracPipe Counterstrike® FGP-ASP90S-750

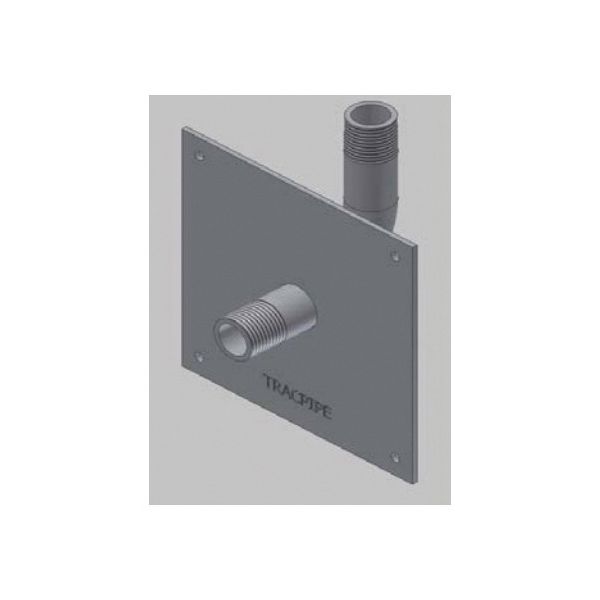

3/4" TRACPIPE CS 90 STUB OUT
SKU
643812
TracPipe® Counterstrike® Appliance Stub-Out, 90 deg, 3/4 in Nominal Size, TracPipe® PS-II/CounterStrike®, 1-1/2 in Length, Iron, Black, Domestic
- Schedule 40 BIP 90 deg stub out for use at movable appliance location, with mounting plate
- Mounting plate 12 ga carbon steel
- 25 psig operating
- 125 psig max operating
- -20 to 200 deg F max operating
- 5 x 5 in mounting flange
- Must be installed in accordance with the TracPipe® design guide and installation instructions and all applicable codes
| Type | 90 deg |
|---|---|
| Nominal Size | 3/4 in |
| Domestic/Import | Domestic |
| Material | Iron |
| Color | Black |
| End Style | TracPipe® PS-II/CounterStrike® |
| Length | 1-1/2 in |
| Brand | Tracpipe |
| Size | 3/4" |
| Type | Stub Outs |
