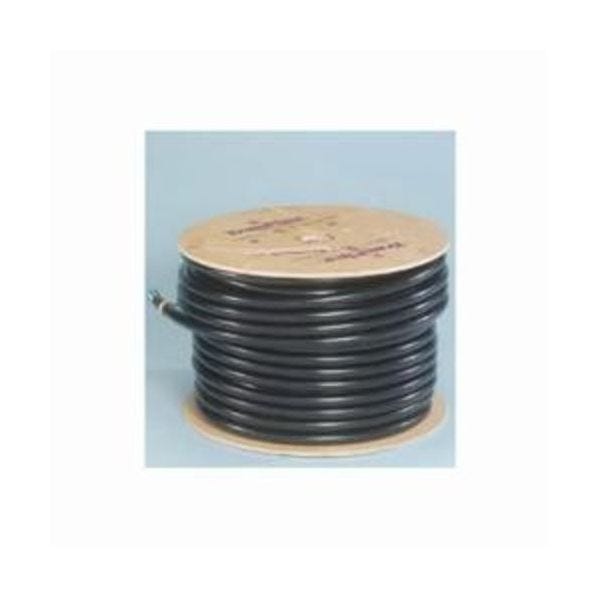

Omega Flex FGP-CS-500-100
1/2 X 100' COUNTERSTRIKE PIPE
SKU
492793
TracPipe® Counterstrike® Flexible Gas Pipe, 1/2 in Nominal, CounterStrike®, 0.597 in Inside Dia, 0.888 in Outside Dia, 100 ft Reel Length, 0.01 in Wall Thickness, 25 psi Working, -20 to 200 deg F, 300 Stainless Steel, ANSI LC1/CSA 6.26, ANSI Z223.1, ASTM E84, ICC Code (IFGC, IPC), ICC LC 1024, ICC PMG 1058, IAPMO ES ER-0227, UL 723, Domestic
- Semi-rigid tubing
- Proprietary polymer jacket - energy dissipating properties
- Black conductive, UV/Ozone resistant polyethylene with flame retardant jacket
- ASTM E-84 compliant not to exceed 25 flame spread and 50 smoke density
- CounterStrike® has been shown to be up to 400 times more resistant to the damaging effects of electrical arcing energy than yellow CSST
- Uses the new AutoSnap® fittings that do not require disassembly/reassembly
- There are no additional bonding requirements for CounterStrike® imposed by the manufacturer's installation instructions
- Lays straighter and pulls easier, dramatically decreasing installation times (and saving you time and money in the process)
- Unlike competitive brands, CounterStrike® is non-annealed making it more crush resistant, and easier to cut
- Superior lightning protection compared to bonded yellow CSST
| Working Pressure | 25 psi |
|---|---|
| Outside Diameter | 0.888 in |
| End Style | CounterStrike® |
| Domestic/Import | Domestic |
| Temperature Rating | -20 to 200 deg F |
| Wall Thickness | 0.01 in |
| Length | 100 ft Reel |
| Nominal Size | 1/2 in |
| Inside Diameter | 0.597 in |
| Specifications | ANSI LC1/CSA 6.26, ANSI Z223.1, ASTM E84, ICC Code (IFGC, IPC), ICC LC 1024, ICC PMG 1058, IAPMO ES ER-0227, UL 723 |
| Material | 300 Stainless Steel |
| Brand | Tracpipe |
| Size | 1/2" |
| Length | 100' |
