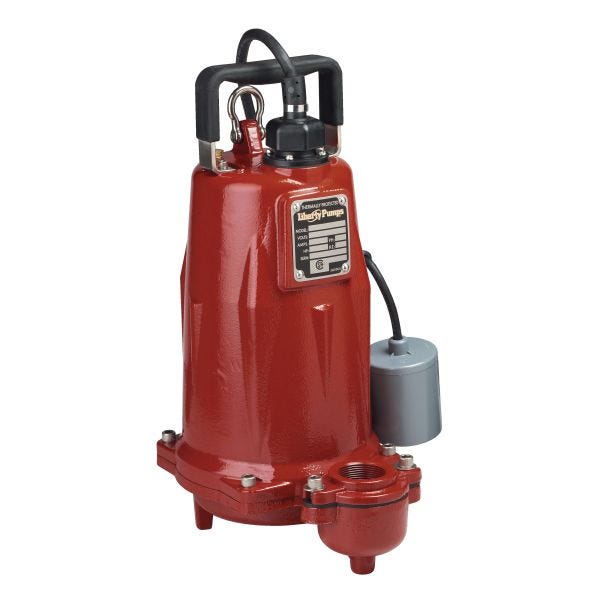

Liberty Pumps FL102M-2
1HP EFFLUENT 230V 25'CORD
SKU
612466
Liberty Pumps®, FL102M-2, High-Head, Series: FL100, 107 gpm Maximum, 15 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 1-1/2 in, 2 in FNPT Outlet, 90 ft Maximum Head, 1 hp, 208 to 230 VAC, 12 A Full Load/28.5 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJOOW 25 ft Cord, 1 Service Factor, Cast Iron 3-Vane Semi-Open Impeller, Flange Mounting, 248 deg F Thermal Overload, NEMA 4X Enclosure, Ball/Race Bearing, Cast Iron, 11-3/4 in W x 18-1/4 in H Dimensions
- Heavy cast iron construction
- Stainless steel rotor shaft
- Dual shaft seals
- Single float, mercury-free level control
- Additional pipe mounting clamp
- Fully adjustable pumping range
- Quick connect 25 ft power cord
- 3/4 in solid handling
- 2 in FNPT threaded discharge with 1-1/2 in FNPT flange provided
- Class B stator winding
- Buna-N O-ring
- Manual
| Motor Speed | 3450 rpm |
|---|---|
| Frequency Rating | 60 Hz |
| Automatic/Non Automatic | Non-Automatic |
| Enclosure Type | NEMA 4X |
| Maximum Flow Rate | 107 gpm |
| Service Factor | 1 |
| Type | High-Head |
| Rated Head | 15 ft |
| Mounting Type | Flange |
| Cord Type | SJOOW 25 ft |
| Temperature Rating | 248 deg F Thermal Overload |
| Amperage Rating | 12 A Full Load/28.5 A Locked Rotor |
| Outlet Size | 1-1/2 in, 2 in FNPT |
| Phase | 1 ph |
| Bearing Type | Ball/Race |
| Maximum Head | 90 ft |
| Dimensions | 11-3/4 in W x 18-1/4 in H |
| Impeller Type | Cast Iron 3-Vane Semi-Open |
| Series | FL100 |
| Material | Cast Iron |
| Horsepower | 1 hp |
| Brand | Liberty Pumps |
