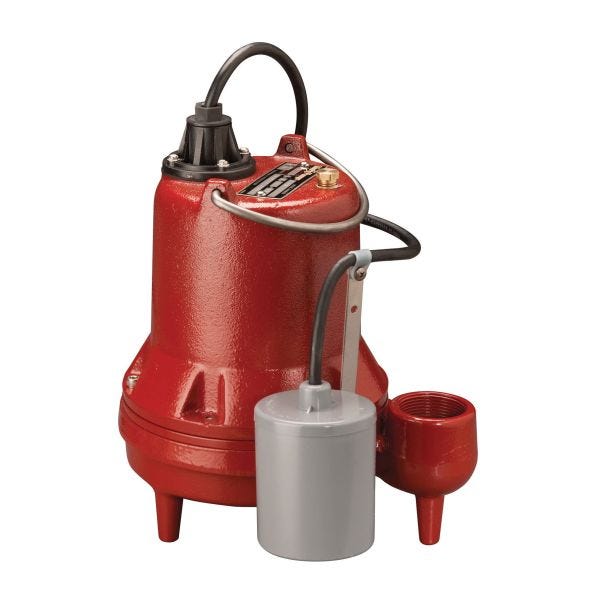

Liberty Pumps FL31A-2
LIBERTY 1/3HP 115V W/25'CORD
SKU
782973
Liberty Pumps®, FL31A-2, Low-Head, Series: FL30, 60 gpm Maximum, 5 ft Rated Head, Automatic/Non Automatic: Automatic, 1-1/2 in FNPT Outlet, 19.8 ft Maximum Head, 1/3 hp, 115 VAC, 10.5 A Full Load/26 A Locked Rotor, 60 Hz Frequency, 1 ph, 1550 rpm Motor, SJTW 25 ft Cord, Engineered Polymer Vortex Impeller, 221 deg F Thermal Overload, NEMA 1/4X Enclosure, Ball/Race Bearing, Cast Iron, 9.8 in W x 9.6 in H Dimensions
- High temp engineering polymer vortex impeller
- Permits passage of solids without clogging
- Cast iron construction with all stainless and brass fasteners
- 416 stainless steel rotor shaft
- Oil filled, thermally protected motor
- Permanently lubricated ball bearings
- Unitized shaft seal
- Mercury-free wide angle float, series plug
- 25 ft quick connect power cord
- 3/4 in solid handling
- 140 deg F fluid temperature
- Class B stator winding
| Motor Speed | 1550 rpm |
|---|---|
| Frequency Rating | 60 Hz |
| Automatic/Non Automatic | Automatic |
| Enclosure Type | NEMA 1/4X |
| Maximum Flow Rate | 60 gpm |
| Type | Low-Head |
| Rated Head | 5 ft |
| Cord Type | SJTW 25 ft |
| Temperature Rating | 221 deg F Thermal Overload |
| Amperage Rating | 10.5 A Full Load/26 A Locked Rotor |
| Outlet Size | 1-1/2 in FNPT |
| Phase | 1 ph |
| Bearing Type | Ball/Race |
| Maximum Head | 19.8 ft |
| Dimensions | 9.8 in W x 9.6 in H |
| Impeller Type | Engineered Polymer Vortex |
| Series | FL30 |
| Material | Cast Iron |
| Horsepower | 1/3 hp |
| Brand | Liberty Pumps |
