MegaPress 28830
3X2"FTGXP STEEL MPGAS RED
SKU
827171

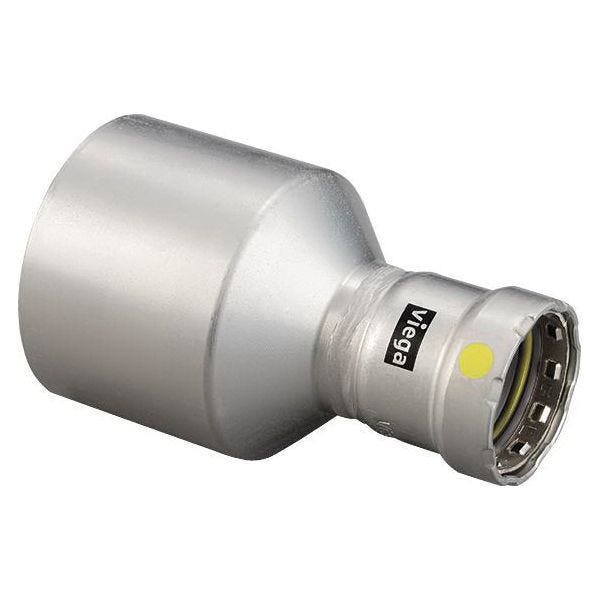

MegaPress® Reducer, Series: Model 6615.1XL, Fitting/Connector Type: Reducing Coupling, 3 x 2 in Nominal, Fitting x Press, SCH 40/STD, 125 psi for Fuel Gas/200 psi for Other Applications, -40 to 180 deg F, Carbon Steel, Nickel Plated/Zinc Plated, 5-3/4 in L, Import
- Approved for more applications than any other carbon steel pipe press fitting system
- Suitable for use with ASTM SCH 5 to 40 carbon steel pipe in accordance with AHJ requirements
- Corrosion resistant zinc nickel coating
- Nearly 150 engineered fitting configurations from 2-1/2 to 4 in
- Approved for underground applications, in accordance with code and local AHJ
- The same hanger and support requirements as threaded systems
- Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
| Finish | Nickel Plated/Zinc Plated |
|---|---|
| Series | Model 6615.1XL |
| Schedule Rating | SCH 40/STD |
| Domestic/Import | Import |
| Pressure Rating | 125 psi for Fuel Gas/200 psi for Other Applications |
| End Style | Fitting x Press |
| Temperature Rating | -40 to 180 deg F |
| Nominal Size | 3 x 2 in |
| Material | Carbon Steel |
| Dimensions | 5-3/4 in L |
| Fitting/Connector Type | Reducing Coupling |
| Brand | Viega MegaPress |
| Type | Fitting Reducers |
| Size | 3" |
