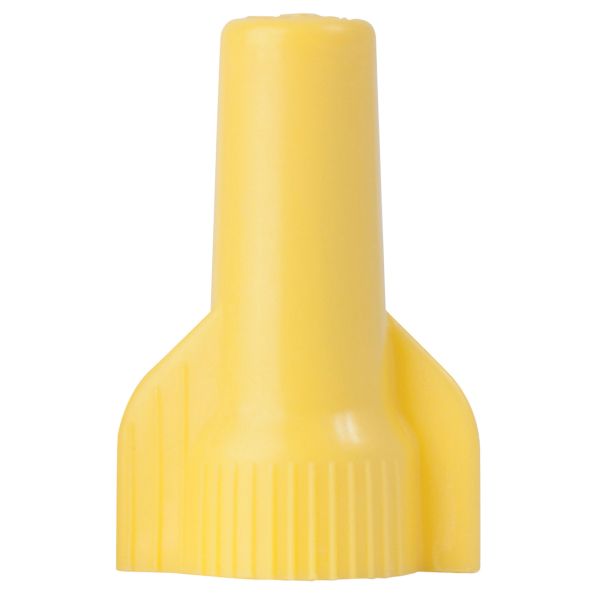

Gardner Bender 10-084
WINGGARD ULTRA YEL#84 100BOX
SKU
718462
Gardner Bender, 10-084, Twist-On Wire Connector, High Leverage, Series: 84 Series, Winged Shell Style, Square Spring, Aluminum/Copper Wire, 22 to 10 AWG Wire, 300/600 VAC, Specifications: 7/32 in Top Dia, 105 deg C, Thermoplastic Shell, Yellow, Zinc Plated, 0.25 in ID x 0.72 in OD x 1.03 in L Dimensions
- Wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design
- 100/Box
- Wiring Connectors
- Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
- Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
- High dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
- Thermoplastic shell provides strength and resistance to chemicals and high temperature with zinc plated spring
- Square-wire plated spring instantly adjusts to the shape and size of the splice, secure connections for positive continuity
- (2) 22 AWG - (3) 12 AWG wire combinations
| Temperature Rating | 105 deg C |
|---|---|
| Color | Yellow |
| Dimensions | 0.25 in ID x 0.72 in OD x 1.03 in L |
| Spring Type | Square |
| Specifications | 7/32 in Top Dia |
| Wire Type | Aluminum/Copper |
| Shell Style | Winged |
| Voltage Rating | 300/600 VAC |
| Series | 84 Series |
| Material | Thermoplastic Shell |
| Wire Size | 22 to 10 AWG |
| Type | High Leverage |
| Finish | Zinc Plated |
| Brand | ECM Industries |
