Guardian Equipment GBF1994
GUARDIAN BF SS DR/EYE/FACE WSH
SKU
259196

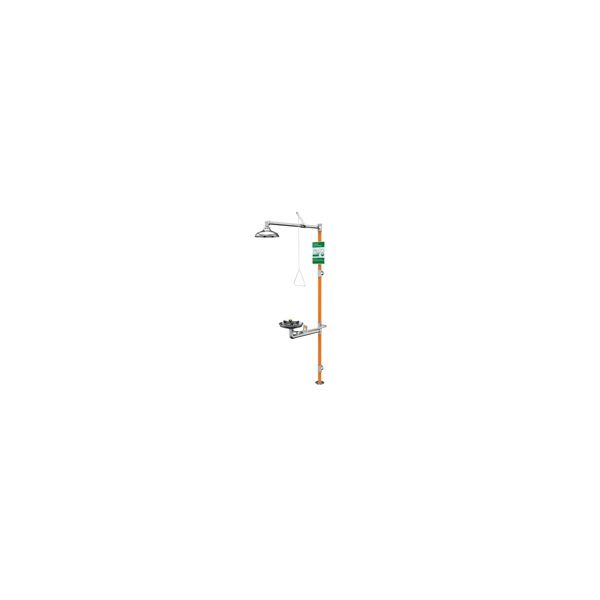

Guardian WideArea™ Combination Eye/Face Wash and Shower Safety Station, Stainless Steel Pipe, Stainless Steel Eyewash Bowl, Stainless Steel Shower Head, 10 in Diameter Head, 11-1/8 in Diameter Bowl, 47-1/2 in Shower Handle Length, Stainless Steel Shower Handle, Floor Mounting, Specifications Met: ANSI Z358.1-2014, ADA Approved, cUPC 8116, Orange, Stainless Steel Fitting, Pull Rod Handle Operation
- Shower head and pull rod are extended for improved access
- Bowl is lowered and extended to permit access by wheelchair user
- Profile of unit is "flattened" to comply with maximum height and knee clearance requirements
- Unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions)
- Shower head - 10 in dia stainless steel with 20 gpm flow control
- Shower valve - 1 in IPS type 316 stainless steel stay open ball valve
- Valve has stainless steel ball and PTFE seals
- Furnished with stainless steel actuating arm and 47-1/2 in stainless steel pull rod
- Spray head assembly - four GS-Plus™ spray heads
- Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow
- Eye face wash valve - 1/2 in IPS type 316 stainless steel stay open ball valve
- Pipe and fittings - schedule 40 brushed stainless steel
- Supply - 1-1/4 in NPT female top or side inlet
- Waste - 1-1/4 in NPT female outlet
- Outlet can be positioned at either 8-1/4 in or 19-3/8 in above finished floor by reversing lower pipe nipples
- Quality assurance - valve and spray head assemblies are factory assembled and water tested prior to shipment
Pipe Material | Stainless Steel |
---|---|
Shower Head Material | Stainless Steel |
Mounting Type | Floor |
Eyewash Bowl Material | Stainless Steel |
Shower Handle Material | Stainless Steel |
Head Diameter | 10 in |
Bowl Diameter | 11-1/8 in |
Shower Handle Length | 47-1/2 in |
Specifications Met | ANSI Z358.1-2014, ADA Approved, cUPC 8116 |
Fitting Material | Stainless Steel |
Operation Type | Pull Rod Handle |
Shower Handle Length | 47-1/2 in |
Color | Orange |
Brand | Guardian Safety |
