Siemens GF323NR
100A 240V 4SN SW NMA3R
SKU
708638

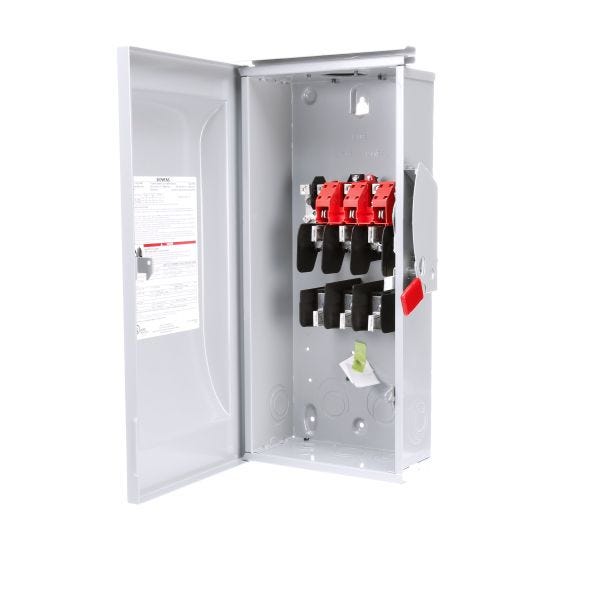

Siemens Safety Switch, Type VBII Enclosed Fusible General Duty Low Voltage Single Throw, 240 VAC, 100 A, 7-1/2 hp, 20 hp, 1/3 ph, 60 Hz Frequency, 3 Pole, 3 Wires, 100 kA Short Circuit, TPST Contact Form, Non-Insulated Insulation, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 22.08 in H x 10.92 in W x 6.52 in D Dimensions, Steel
- Cover interlock
- Tangential knockouts through 600 A for easy conduit lineup
- Quick make, quick break operating mechanism that ensures positive operation
- Generous wiring gutters that meet or exceed NEC® wire bending space requirements
- Visible blade, double break switching action
- Positive 2 or 3-point mounting
- Highly visible red handle grip
- Informative door labeling which includes replacement parts list
- Handle and cover padlocking provisions
- Side hinged door that opens 180 deg for easier wiring
- A unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installers hands
- Without insulation
| Material | Steel |
|---|---|
| Dimensions | 22.08 in H x 10.92 in W x 6.52 in D |
| Number of Poles | 3 |
| Short Circuit Current Rating | 100 kA |
| Insulation Type | Non-Insulated |
| Frequency Rating | 60 Hz |
| Enclosure Type | NEMA 3R |
| Phase | 1/3 |
| Mounting Type | Surface |
| Type | Type VBII Enclosed Fusible General Duty Low Voltage Single Throw |
| Contact Form | TPST |
| Voltage Rating | 240 VAC |
| Horsepower | 7-1/2 hp, 20 hp |
| Temperature Rating | -29 to 85 deg C |
| Amperage Rating | 100 A |
| Number of Wires | 3 |
| Terminal Type | Lug |
| Brand | Siemens Ind |
