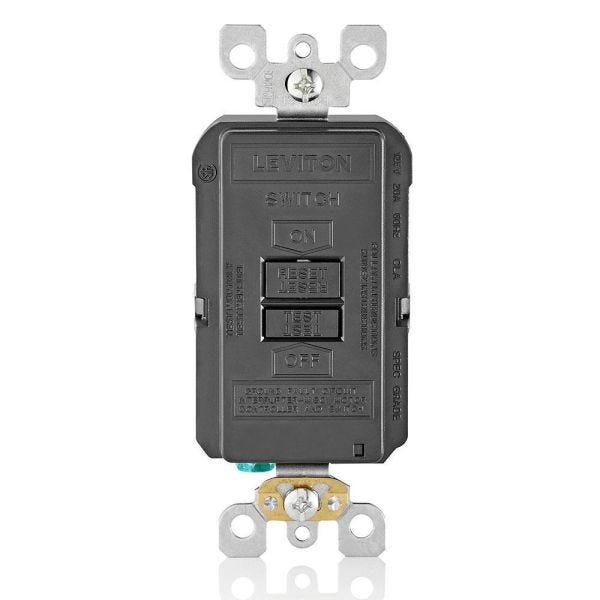

Leviton GFRBF-XE
20A 125V BLANK FACE GFCI BLACK
SKU
932437
Leviton® SmartlockPro® Blank Face GFCI Receptacle, Feed-Through Self-Test Slim, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R/5-20R NEMA Rating, Commercial/Residential Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate, Black, 4.21 in H x 1.69 in W x 1.4 in D Dimensions
- Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 s
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Compatible with all Decora® devices and wallplates
| Dimensions | 4.21 in H x 1.69 in W x 1.4 in D |
|---|---|
| Amperage Rating | 20 A |
| Color | Black |
| Grade | Commercial/Residential |
| Voltage Rating | 125 VAC |
| Number of Wires | 3 |
| Material | Polycarbonate |
| Horsepower | 1 hp |
| Temperature Rating | -35 to 66 deg C |
| Number of Poles | 2 |
| Type | Feed-Through Self-Test Slim |
| NEMA Rating | NEMA 5-15R/5-20R |
| Terminal Type | Back/Side Wire |
| Brand | Leviton Mfg |
| Color | Black |
| Type | GFCI |
| Amperage | 20A |
