Glasfloss GDS16252

FIBERGLASS FILTER 16X25X2
SKU
645723
The product cannot be delivered by Truck Shipping

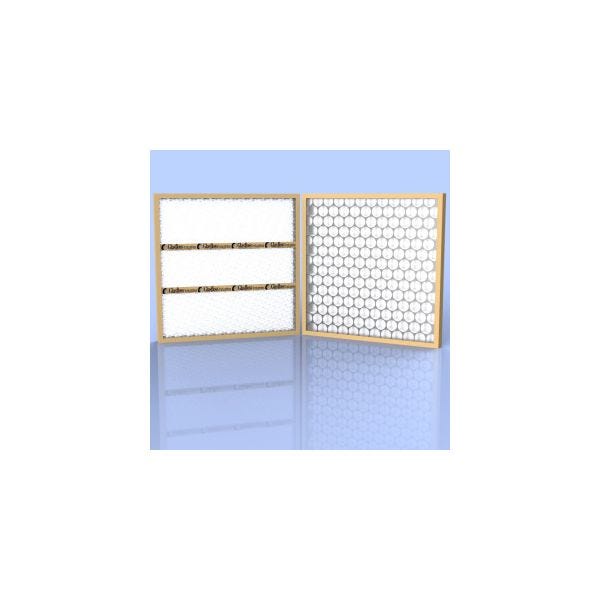

Glasfloss® Disposable Panel Filter, Series: GDS, 16 in Width, 2 in Depth, 25 in Height, MERV: 1 to 5, 500 fpm, 180 deg F, Kraft Board Frame, 3 to 10 micron, <20% Efficiency, 0.28 in WG Initial Resistance, 1/2 in WG Final Resistance, Fiberglass Media, 24-5/8 in H x 15-5/8 in W x 1-5/8 in D, Domestic

  • Progressively dense heavy duty media
  • Heavy duty one piece box frame construction
  • Thermally bonded
  • All corners shall be closed and sealed
  • The fiberglass filter media shall be coated with a non-toxic, non-flammable, odor free adhesive
  • Craftboard frame, double reinforcement struts, glue beads
More Information
Depth 2 in
MERV 1 to 5
Final Resistance 1/2 in WG
Efficiency <20%
Filter Rating 3 to 10 micron
Temperature Rating 180 deg F
Initial Resistance 0.28 in WG
Height 25 in
Width 16 in
Overall Dimensions 24-5/8 in H x 15-5/8 in W x 1-5/8 in D
Media Material Fiberglass
Frame Material Kraft Board
Domestic/Import Domestic
Series GDS
Flow Rate 500 fpm
Brand Glasfloss
