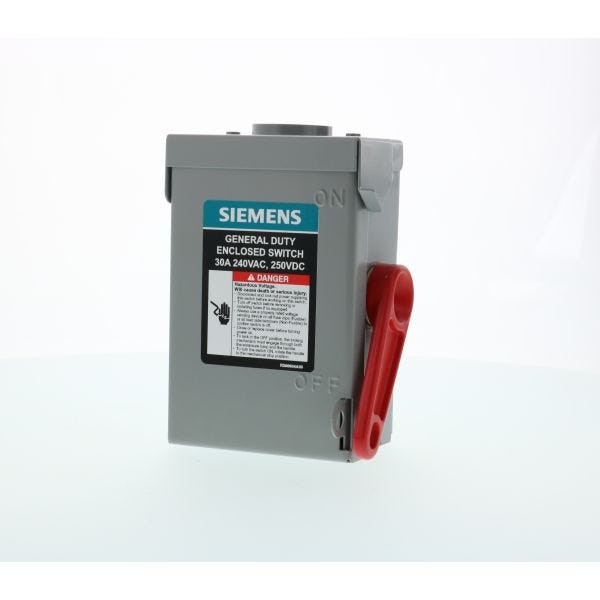

Siemens GNF221RA
2P 2WIRE 240V 30A SAFETY SWITC
SKU
899787
Siemens General Duty Safety Switch, Type VBII Non-Fused Low Voltage, Series: A Series, 240 VAC, 250 VDC, 30 A, 3 hp, 5 hp, 1 ph, 2 Pole, 2 Wires, 10/100 kA Short Circuit, Double Break/Padlock Actuator, NEMA 3R Enclosure, Line/Load Lug Terminal, 6.35 in H x 4.56 in W x 2.7 in D Dimensions, Steel, Gray, Galvanized
- Updated software itch is an enhancement of legacy VBII design
- New compact sizes for improved space efficiency
- New oversized lugs for maximum wire range and easy termination, 30 A software itches
- Visible blade, double break software itching action
- Padlocking provisions to lock cover closed or to lock software itch in the "OFF" position
- Rated 10000 AIC with class K fuses or H fuses or rated 100000 AIC with class R fuses
| Material | Steel |
|---|---|
| Series | A Series |
| Dimensions | 6.35 in H x 4.56 in W x 2.7 in D |
| Number of Poles | 2 |
| Short Circuit Current Rating | 10/100 kA |
| Actuator Type | Double Break/Padlock |
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Type | Type VBII Non-Fused Low Voltage |
| Voltage Rating | 240 VAC, 250 VDC |
| Finish | Galvanized |
| Horsepower | 3 hp, 5 hp |
| Color | Gray |
| Amperage Rating | 30 A |
| Number of Wires | 2 |
| Terminal Type | Line/Load Lug |
| Brand | Siemens Ind |
