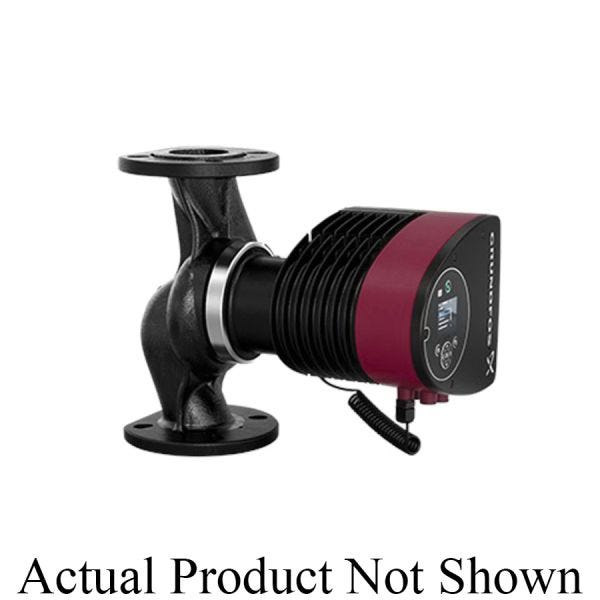

Grundfos 98126812
MAGNA3 50-80 CI 115V
SKU
581987
Grundfos Circulator Pump, 26-1/4 ft Maximum Head, 18.5 to 318 W, 115 VAC, 0.31 to 2.81 A, 60 Hz, 1 ph, 174 psi Maximum, 32 to 104 deg F Ambient, X4D, 14.84 in W x 9.45 in H
- Auto adapt function
- Flow adapt and flow limit (more than a pump function as it reduces the need for pump throttling valves)
- Proportional-pressure control
- Constant-pressure control
- Constant-temperature control
- Maximum or minimum, constant-curve duty
- Automatic night setback
- No external motor protection required
- Insulating shells supplied with single-head pumps for heating systems
- Large temperature range where the liquid temperature and the ambient temperature are independent of each other
| Voltage Rating | 115 VAC |
|---|---|
| Power Rating | 18.5 to 318 W |
| Maximum Pressure | 174 psi |
| Maximum Head | 26-1/4 ft |
| Amperage Rating | 0.31 to 2.81 A |
| Phase | 1 ph |
| Temperature Rating | 32 to 104 deg F Ambient |
| Dimensions | 14.84 in W x 9.45 in H |
| Enclosure Type | X4D |
| Frequency Rating | 60 Hz |
| Brand | Grundfos |
