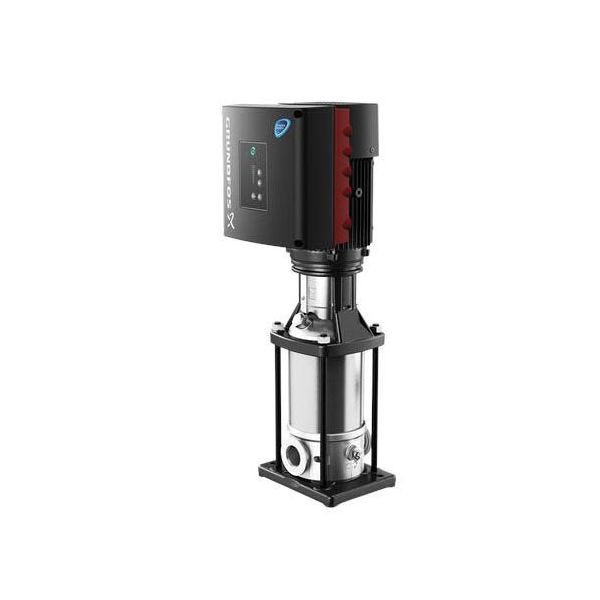

Grundfos 99392191
GRUNDFOS CRE20-02 5HP VFD
SKU
810223
Grundfos, 99392191, In-Line Centrifugal E-Pump With Integrated Frequency Converter, 2-Stage, Series: CRE, 110 gpm Flow Rate, 2 in FNPT Inlet, 2 in FNPT Outlet, 136-1/2 ft Maximum Head, 5 hp Power, 200 to 240 VAC, 13.2 to 10.9 A, 60 Hz Frequency, 3 ph, 362 psi Maximum, 3461 rpm Motor, 1.15 Service Factor, (2) 304 Stainless Steel Impeller, Vertical (Zero-U) Mounting, -4 to 250 deg F, IP55 TEFC Enclosure, Cast Iron
- The CRE pump is supplied by one supplier
- Reduces installation and wiring costs
- The functionalities are designed for specific pump applications
- The CRE pump with sensor is a plug and pump product
- Grundfos quality, superior reliability and performance
- A compact system
- The pump, motor and VFD are tested as a complete unit in the factory
- Energy efficiency
- Fitted with sensor
- Basic material version
- EPDM rubber parts
- Balanced cartridge shaft seal with O-ring, silicon carbide rotating seal face, silicon carbide stationary seal face and EPDM secondary seal
| Voltage Rating | 200 to 240 VAC |
|---|---|
| Power Rating | 5 hp |
| Maximum Pressure | 362 psi |
| Maximum Head | 136-1/2 ft |
| Type | 2-Stage |
| Amperage Rating | 13.2 to 10.9 A |
| Phase | 3 ph |
| Material | Cast Iron |
| Inlet Size | 2 in FNPT |
| Temperature Rating | -4 to 250 deg F |
| Series | CRE |
| Mounting Type | Vertical (Zero-U) |
| Impeller Type | (2) 304 Stainless Steel |
| Motor Speed | 3461 rpm |
| Outlet Size | 2 in FNPT |
| Service Factor | 1.15 |
| Flow Rate | 110 gpm |
| Enclosure Type | IP55 TEFC |
| Frequency Rating | 60 Hz |
| Brand | Grundfos |
